MNF881A31 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

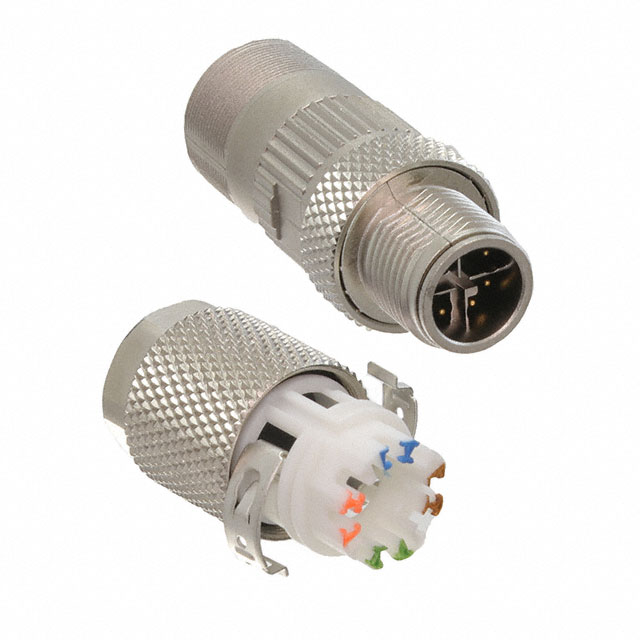

CONN PLUG MALE 8P NICKL-GOLD IDC
| Part | Insert Material [custom] | Insert Material [custom] | Contact Material | Backshell Material, Plating | Applications | Current Rating (Amps) | Ingress Protection | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Termination | Voltage Rating | Features | Shell Size - Insert | Connector Type | Shell Material | Shielding | Orientation [x] | Number of Positions | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Shell Finish | Mounting Type | Color | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Nylon | Polyamide (PA) | Brass | Nickel Zinc Die Cast | Railway | 0.5 A | IP67 - Dust Tight Waterproof | 9.7 mm | 5 mm | 0.197 in | 0.382 in | IDC | 50 VAC 60 VDC | Backshell | M12-8 | Plug Male Pins | Zinc Die Cast | Shielded | X | 8 | UL94 V-0 | 85 °C | -40 C | Metal | Nickel | Free Hanging (In-Line) | Silver | Threaded | Nickel-Gold |
