EDS02 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Body Material	Electrical Life	Length	Length	Height Above Board	Height Above Board	Actuator Type	Current Rating (Amps)	Actuator Level	Circuit	Voltage Rating	Termination Style	Contact Finish	Mounting Type	Pitch	Pitch	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors EDS02SNRSTU04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	0.196 in	4.98 mm	0.136 "	3.45 mm	Slide (Standard)	25 mA	Flush Recessed	SPST	24 VDC	J Lead	Gold	Surface Mount	2.54 mm	0.1 "	2	Copper Alloy	85 °C	-20 ░C

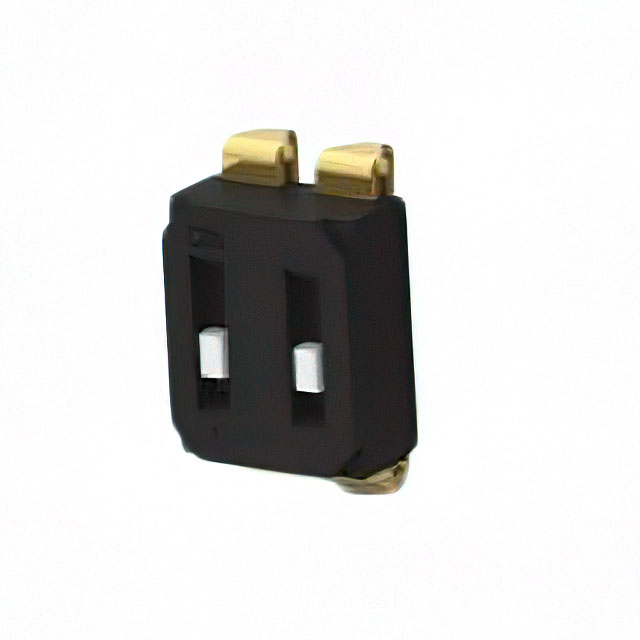

TE Connectivity AMP Connectors EDS02SNRNTR04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	0.196 in	4.98 mm	0.136 "	3.45 mm	Slide (Standard)	25 mA	Flush Recessed	SPST	24 VDC	J Lead	Gold	Surface Mount	2.54 mm	0.1 "	2	Copper Alloy	85 °C	-20 ░C

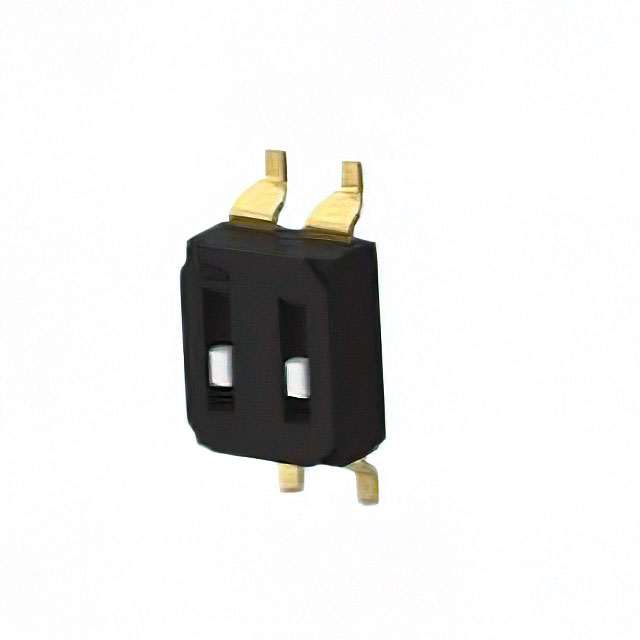

TE Connectivity AMP Connectors EDS02SGRNTR04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	0.196 in	4.98 mm	0.134 in	3.4 mm	Slide (Standard)	25 mA	Flush Recessed	SPST	24 VDC	Gull Wing	Gold	Surface Mount	2.54 mm	0.1 "	2	Copper Alloy	85 °C	-20 ░C
