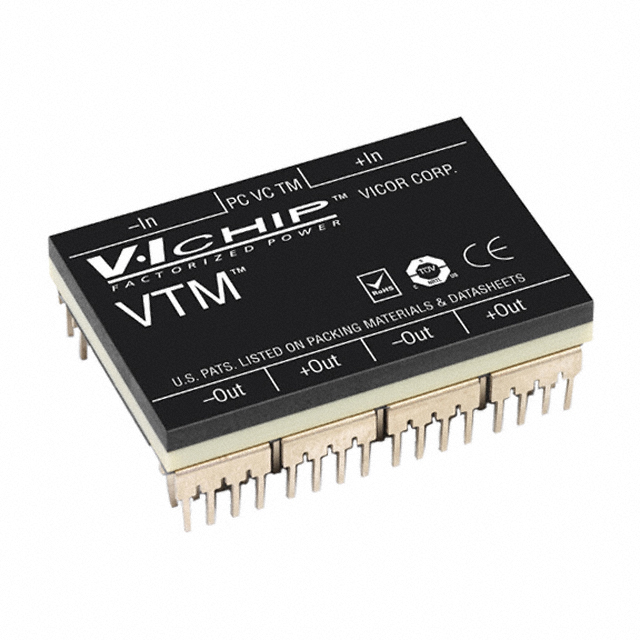

VTM48ET040 Series
Manufacturer: Vicor Corporation
Beta
⌘K
DC DC CONVERTER 4V 200W
| Part | Voltage - Output 1 | Number of Outputs | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Features | Package / Case | Applications | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Voltage - Input (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vicor Corporation | 4 V | 1 | 200 Watts | -55 C | 125 °C | Through Hole | 26 V | 50 A | OCP OTP OVP Remote On/Off SCP | Module | ITE (Commercial) | 2250 VDC | 0.87 in | 6.7 mm | 22 mm | 32.5 mm | 1.28 in | 0.26 in | 94.5 % | 55 V | Voltage Transformation Module |
Vicor Corporation | 4 V | 1 | 200 Watts | -40 C | 125 °C | Through Hole | 26 V | 50 A | Remote On/Off | Module | ITE (Commercial) | 2250 VDC | 0.87 in | 6.7 mm | 22 mm | 32.5 mm | 1.28 in | 0.26 in | 94.5 % | 55 V | Voltage Transformation Module |
