3896 Series

Catalog

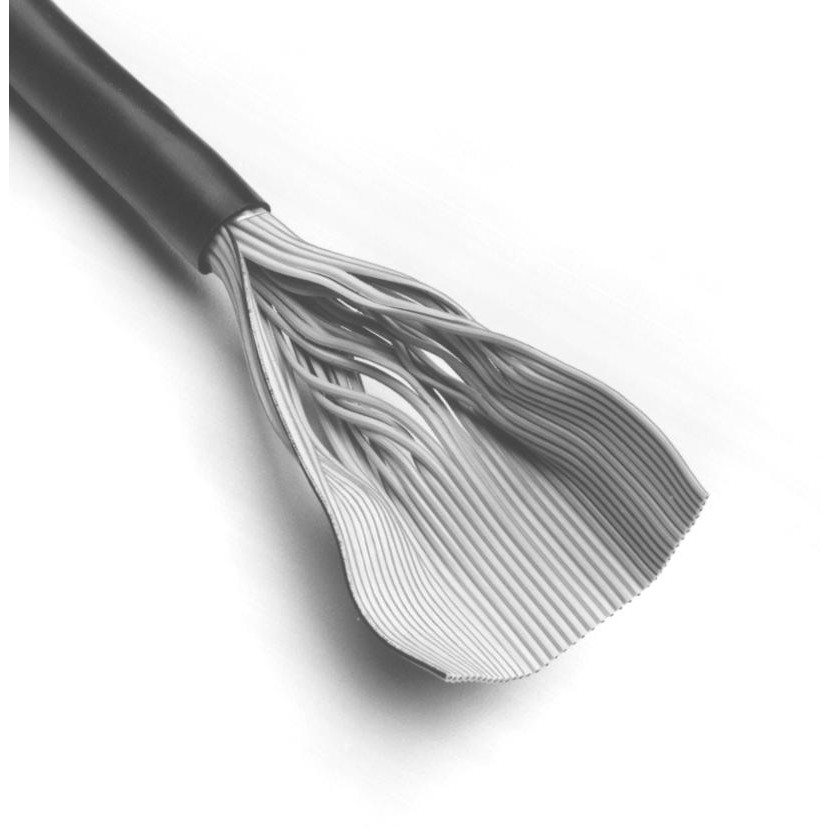

RIBBON CABLE, ROUND JACKETED FLAT, UNSHIELDED, 30 CONDUCTOR, 30 AWG, 275 FT, 83.82 M

Part	Insulation Resistance	Conductor Material	First Conductor Mark	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Number of Conductors	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Length	Length	Cable Type	Pitch	Pitch	Jacket (Insulation) Material	Shielding	Number of Conductors [custom]	Length	Length [x]	Length [x]
3M Electronic Specialty 3896/30	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	30	30 V	0.725 in	18.42 mm	275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/68SO	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	68	30 V			275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/100	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	100	30 V			275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/52	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596		30 V	1.275 in	32.39 mm	275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded	52
3M Electronic Specialty 3896/100SF	10 GOhm	Copper Tinned	Red	Splice Free Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	100	30 V			275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/26	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	26	30 V	0.625 in	15.88 mm	275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/32	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	32	30 V	0.775 in	19.69 mm	275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/100SO	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	100	30 V			275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/26SF	10 GOhm	Copper Tinned	Red	Splice Free Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	26	30 V	0.625 in	15.88 mm	275 ft	83.82 m	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded
3M Electronic Specialty 3896/80SF 275	10 GOhm	Copper Tinned	Red	Zippable	-20 ░C	105 ░C	Black	30 AWG	38 AWG	7 Strands	UL Style 20596	80	30 V			1 ft 25 ft 275 ft	7.62 m 83.82 m 304.8 mm	Flat Cable Round Jacket	0.64 mm	0.025 in	Poly-Vinyl Chloride (PVC)	Unshielded		Enter Number of Feet in Order Quantity	50 ft	15.24 m
