ANT-8 Series

Catalog

ANTENNA FPC 868/915MHZ 1.13 100 UFL

Part	Return Loss	Height (Max) [z]	Height (Max) [Max] [z]	Applications	Features	Features	RF Family/Standard	VSWR [x]	VSWR [x]	Frequency (Center/Band)	Termination	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Power - Max [Max]	Gain	Mounting Type	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	Height (Max) [z]	VSWR	Ingress Protection

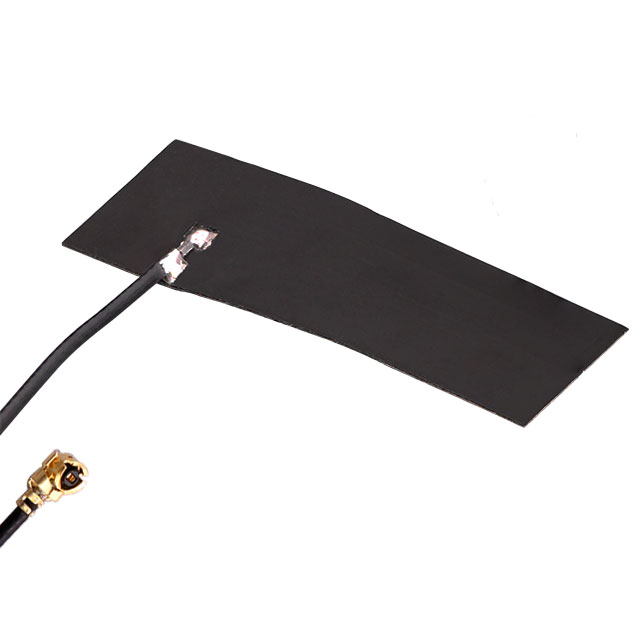

TE Connectivity AMP Connectors ANT-8/9-FPC-UFL-100	-12.7 dB -9.5 dB	0.2 mm	0.01 in	ISM LoRaWAN LPWA	Cable	100 mm	General ISM	1.6	2	868 MHz 915 MHz	I-PEX MHF1 U.FL (UMCC)	1 GHz	UHF	300 MHz	2 W	-3.2 dBi -3 dBi	Adhesive	Flat Patch	862 MHz 902 MHz	876 MHz 930 MHz	2
TE Connectivity AMP Connectors ANT-8/9-VDP-2000-RPS		6.71 mm		ISM LoRa Sensor Networks Sigfox	Cable - 2m		General ISM			800 MHz 850 MHz 900 MHz 916 MHz		1 GHz	UHF	300 MHz	10 W	0.5 dBi 0.6 dBi	Adhesive	Flat Bar	863 MHz 902 MHz	873 MHz 928 MHz	3	0.264 in	1.9	IP67

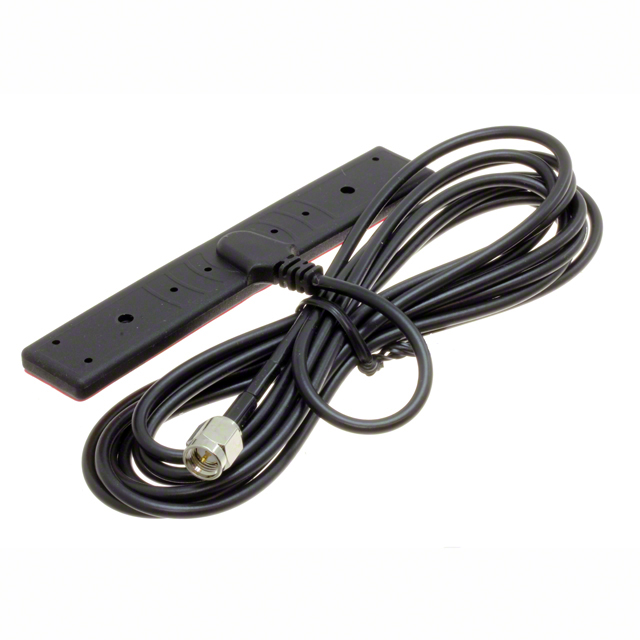

TE Connectivity AMP Connectors ANT-8/9-HDP-2000-RPS		6.2 mm		ISM LoRa Sensor Networks Sigfox	Cable - 2m		General ISM			800 MHz 850 MHz 900 MHz 916 MHz	RP-SMA Male	1 GHz	UHF	300 MHz	10 W	0.5 dBi 0.6 dBi	Adhesive	Whip Center-Fed Double	863 MHz 902 MHz	873 MHz 928 MHz	3	0.244 in	1.9	IP67
TE Connectivity AMP Connectors ANT-8/9-HDP-2000-SMA		6.2 mm		ISM LoRa Sensor Networks Sigfox	Cable - 2m		General ISM			800 MHz 850 MHz 900 MHz 916 MHz		1 GHz	UHF	300 MHz	10 W	0.5 dBi 0.6 dBi	Adhesive	Whip Center-Fed Double	863 MHz 902 MHz	873 MHz 928 MHz	3	0.244 in	1.9	IP67
