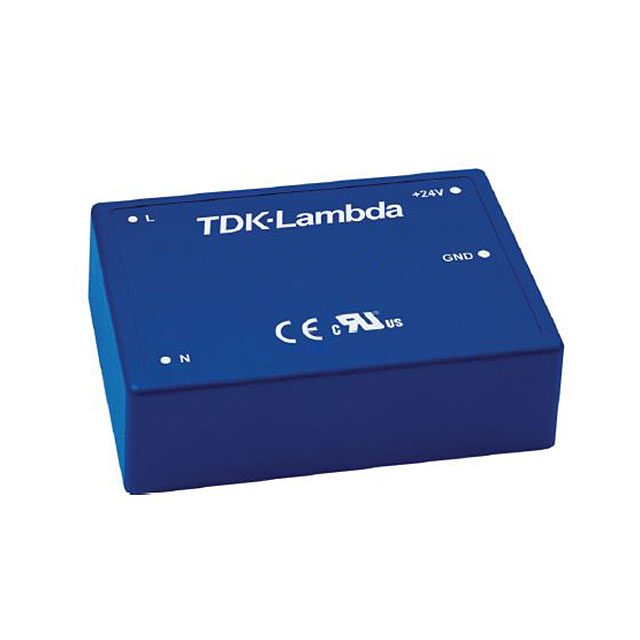

KMS60A Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 2.5A 60W 4-PIN
| Part | Load Regulation | Weight [custom] | Weight [custom] | Line Regulation | Applications | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input [Min] | Voltage - Input [Max] | Type | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Number of Outputs | Current - Output (Max) [Max] | Power (Watts) | Features | Mounting Type | Standard Number | Approval Agency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 240 mV | 0.617 lb | 279.87 g | 120 mV | ITE (Commercial) Medical | 1.06 in | 27 mm | 89 mm | 3.5 " | 2.5 " | 63.5 mm | 90 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | 87 % | -40 °C | 85 °C | 7-DIP Module 5 Leads | 1 | 2.5 A | 60 W | Universal Input | Through Hole | 60601-1 60950-1 62368-1 | CE cURus | 24 V |
