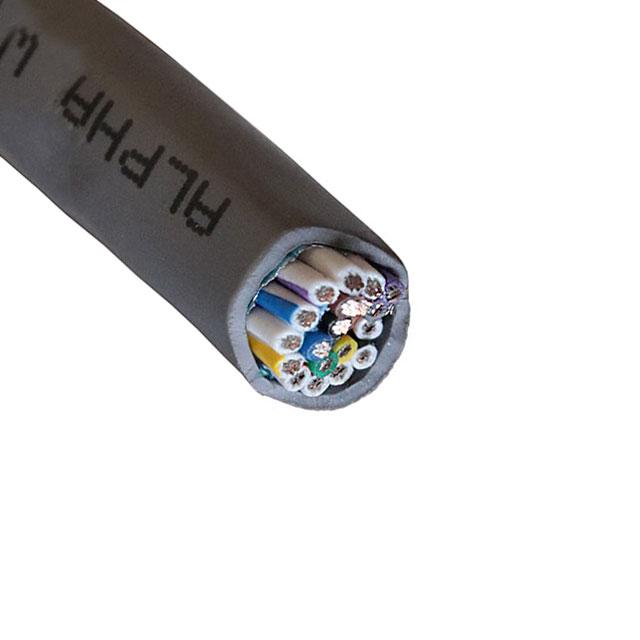

M4644 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-CONDUCTOR CABLES AE C&C
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Material | Ratings | Shield Type | Voltage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Cable Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 914.4 m | 3000 ' | Copper Tinned | UL Style 2464 | Foil | 300 VDC | 22 AWG | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 20 | 8.46 mm | 0.333 in | 80 °C | -20 ░C | Drain Wire Rip Cord | Multi-Conductor | Slate |
