FS820R08 Series
Manufacturer: INFINEON
Beta
⌘K

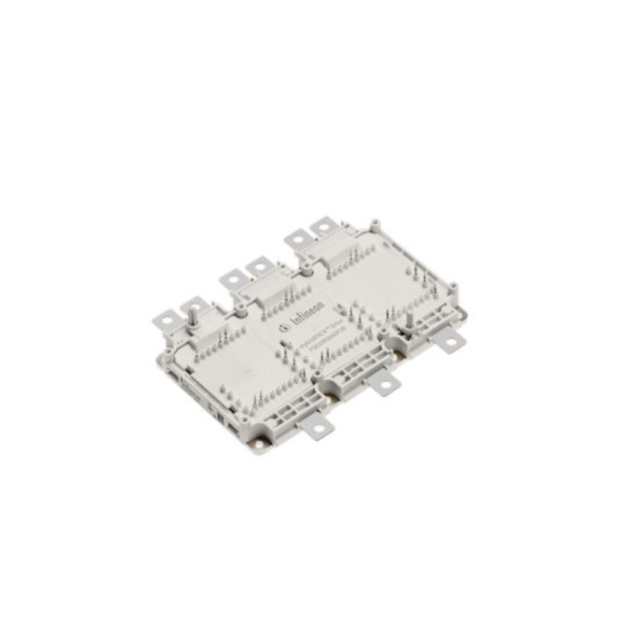

THE FS820R08A6P2LB IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ DRIVE HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 820 A.
| Part | Configuration | IGBT Type | Operating Temperature | Input | Package / Case | NTC Thermistor | Supplier Device Package | Current - Collector (Ic) (Max) [Max] | Mounting Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector Cutoff (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Input Capacitance (Cies) @ Vce | Power - Max [Max] | Vce(on) (Max) @ Vge, Ic [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Three Phase Inverter | Trench Field Stop | 175 °C | Standard | Module | Module | 820 A | Chassis Mount | ||||||||
 INFINEON | Three Phase Inverter | Trench Field Stop | Standard | Module | AG-HYBRIDD-2 | 450 A | Chassis Mount | 750 V | 1 mA | -40 °C | 150 °C | 80 nF | 714 W | 1.35 V |
