MNG14 Series

Catalog

CONN RING CIRC 14-16AWG #8 CRIMP

Part	Material - Insulation	Contact Finish	Insulation	Width - Outer Edges	Width - Outer Edges	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Stud/Tab Size	Color	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Thickness	Thickness	Mounting Type	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Gender	Insulation Diameter	Insulation Diameter	Length - Overall	Length - Overall	Tab Width	Tab Width	Number of Wire Entries	Width - Outer Edges [x]	Width - Outer Edges [x]
3M Electronic Specialty MNG14-8R/LK	Nylon Polyamide (PA)	Tin	Insulated	7.87 mm	0.31 in	Crimp	14 AWG	16 AWG	8 Stud	Blue	Circular	23.88 mm	0.94 in	Copper ETP	0.76 mm	0.03 in	Free Hanging (In-Line)

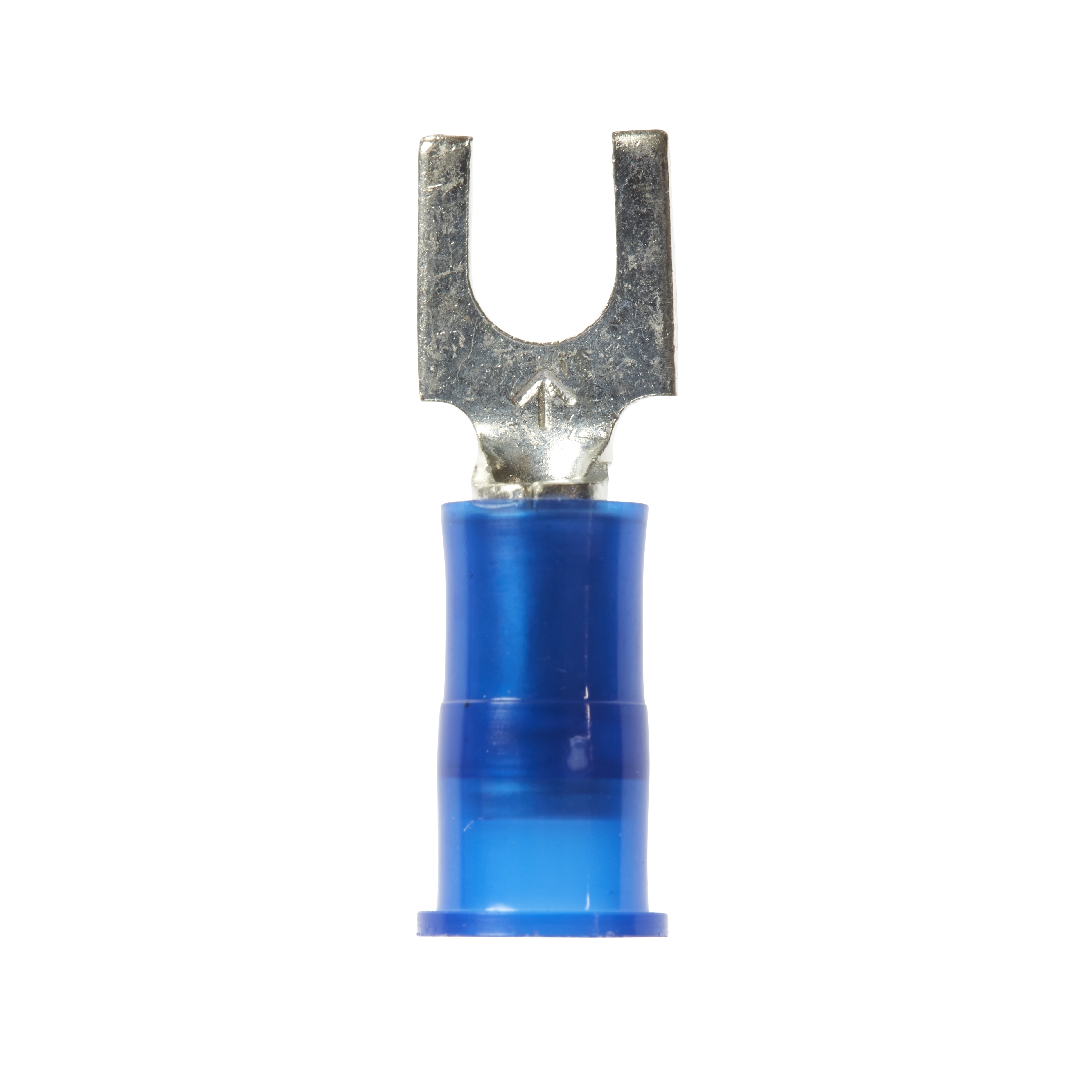

3M Electronic Specialty MNG14-8FBX-BOTTLE	Nylon Polyamide (PA)	Tin	Insulated			Crimp	14 AWG	16 AWG	8 Stud	Blue	Standard	21.84 mm	0.86 "	Copper ETP			Free Hanging (In-Line)	0.46 in	11.68 mm	6.35 mm	0.25 "

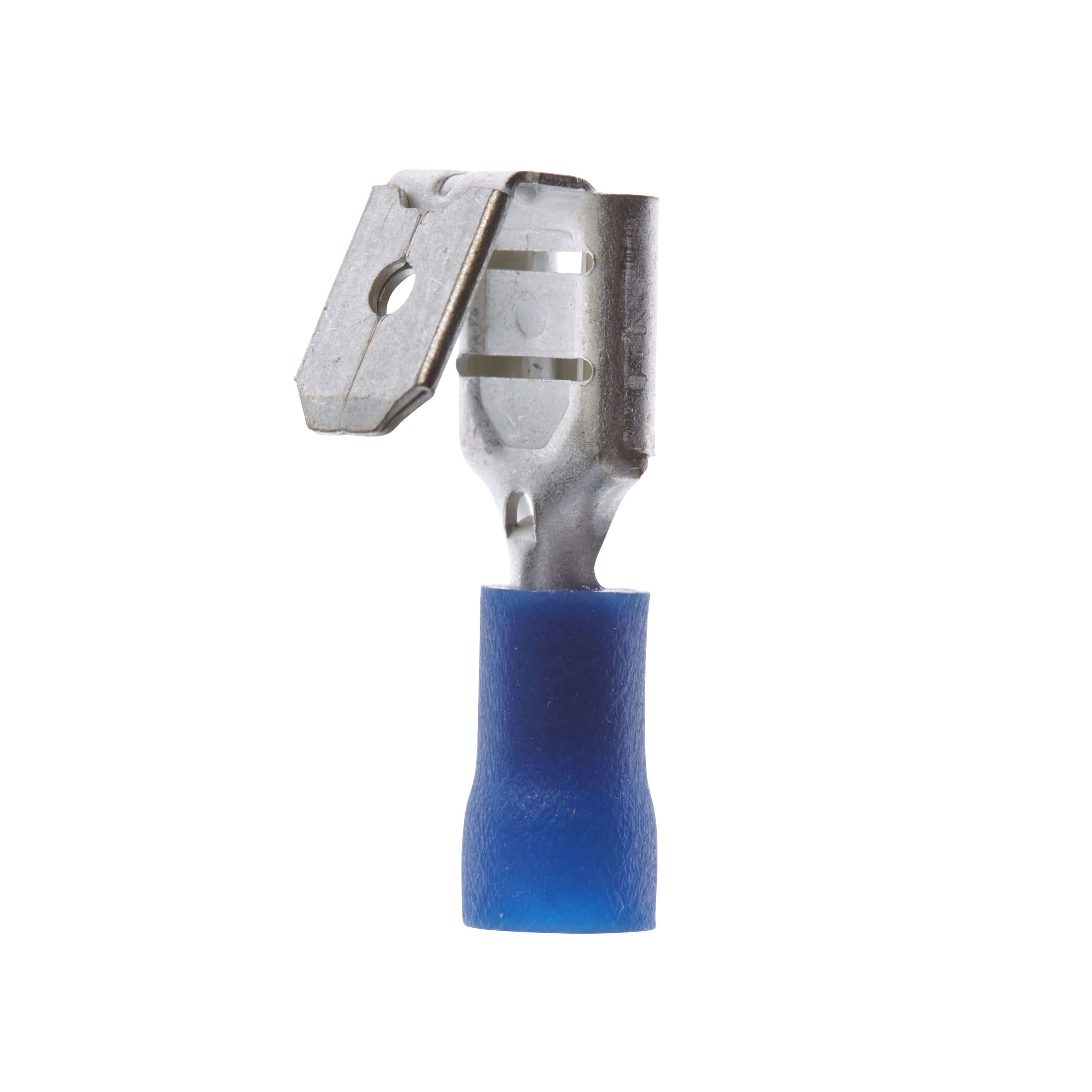

3M Electronic Specialty MNG14-250DMFX-A-BOTTLE			Non-Mating End Insulated			Crimp	14 AWG	16 AWG		Blue	Stacked	22.35 mm	0.88 in				Free Hanging (In-Line)					6.35 mm	0.25 in	0.81 mm	0.032 in	Female Male

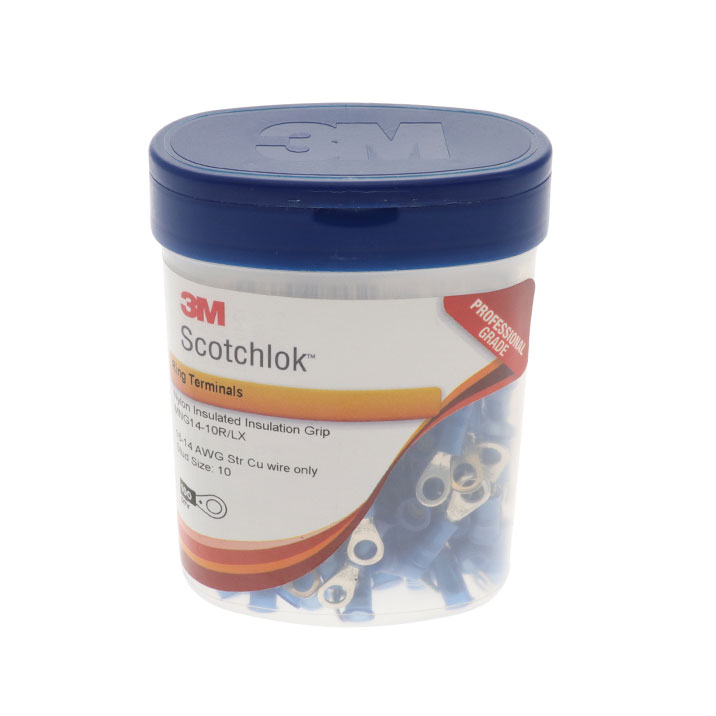

3M Electronic Specialty MNG14-10R/LX-BOTTLE	Nylon Polyamide (PA)	Tin	Insulated	7.87 mm	0.31 in	Crimp	14 AWG	16 AWG	10 Stud	Blue	Circular	23.88 mm	0.94 in	Copper ETP	0.76 mm	0.03 in	Free Hanging (In-Line)
3M Electronic Specialty MNG14-6FBK	Nylon Polyamide (PA)	Tin	Insulated			Crimp	14 AWG	16 AWG	6 Stud	Blue	Standard	21.84 mm	0.86 "	Copper ETP			Free Hanging (In-Line)	0.46 in	11.68 mm	6.35 mm	0.25 "
3M Electronic Specialty MNG14-10R/LK	Nylon Polyamide (PA)	Tin	Insulated	7.87 mm	0.31 in	Crimp	14 AWG	16 AWG	10 Stud	Blue	Circular	23.88 mm	0.94 in	Copper ETP	0.76 mm	0.03 in	Free Hanging (In-Line)

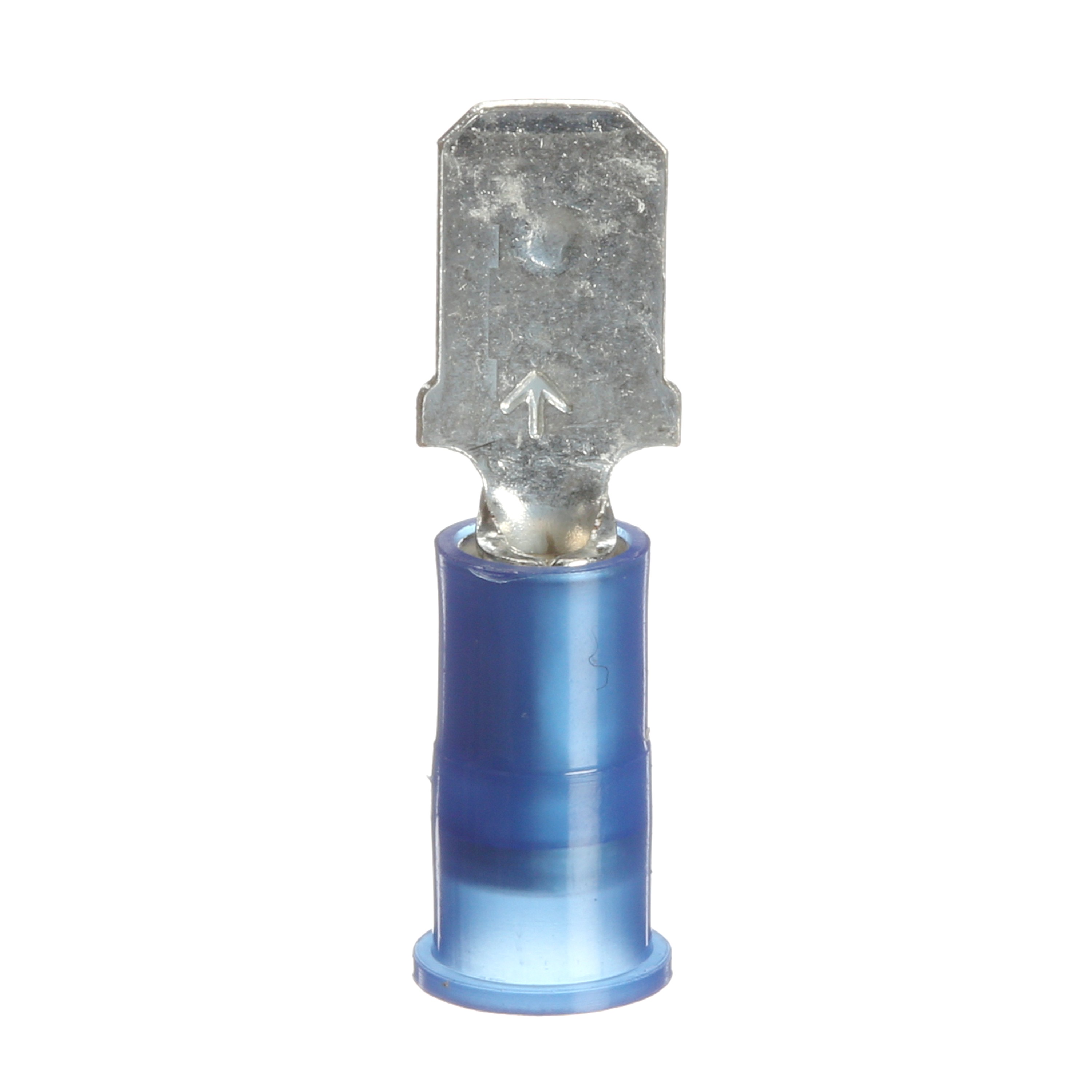

3M Electronic Specialty MNG14-250DMX-BOTTLE		Tin	Non-Mating End Insulated			Crimp	14 AWG	16 AWG		Blue	Standard	23.88 mm	0.94 in	Copper ETP			Free Hanging (In-Line)					6.35 mm	0.25 in	0.81 mm	0.032 in	Male
3M Electronic Specialty MNG14-110DFK-A			Non-Mating End Insulated			Crimp	14 AWG	16 AWG		Blue	Standard						Free Hanging (In-Line)							0.51 mm	0.02 in	Female	0.145 in	3.68 mm	0.77 in	19.56 mm	0.11 "	2.79 mm
3M Electronic Specialty MNG14BCK			Fully Insulated			Crimp	14 AWG	16 AWG		Blue	Butt Splice Individual Openings Inline																						2
3M Electronic Specialty MNG14-10FLK	Nylon Polyamide (PA)	Tin	Insulated			Crimp	14 AWG	16 AWG	10 Stud	Blue	Snap Spring	22.61 mm	0.89 in	Copper ETP			Free Hanging (In-Line)	0.46 in	11.68 mm	6.35 mm	0.25 "													0.32 in	8.13 mm
