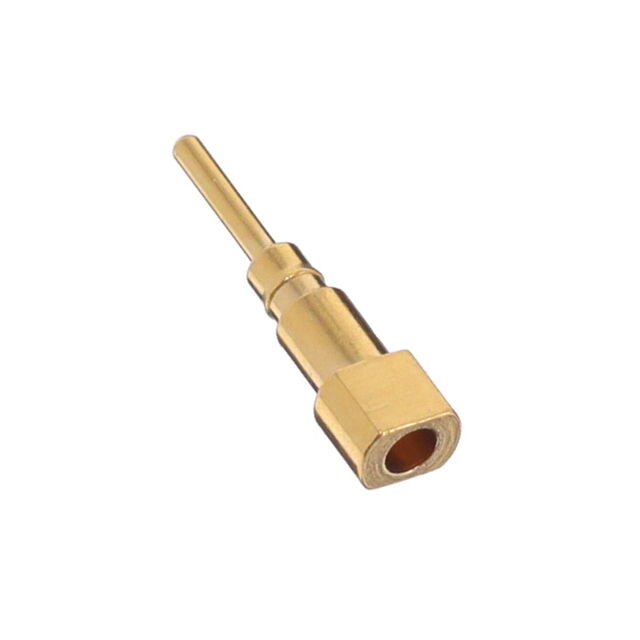

1502-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN HDR OPEN
| Part | Contact Finish Thickness | Contact Finish Thickness | Insulation | Terminal Style | Contact Finish | Length - Overall | Length - Overall | Flange Diameter | Flange Diameter | Termination | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | Non-Insulated | Wire | Gold | 10.08 mm | 0.397 in | 0.058 in | 1.47 mm | Press-Fit | Brass Alloy | 0.157 in | 3.99 mm | 0.028 in | 0.71 mm | Through Hole | 0.07 " | 1.78 mm | 1.45 mm | 0.057 in | 4.32 mm | 0.17 " | PC Pin |
