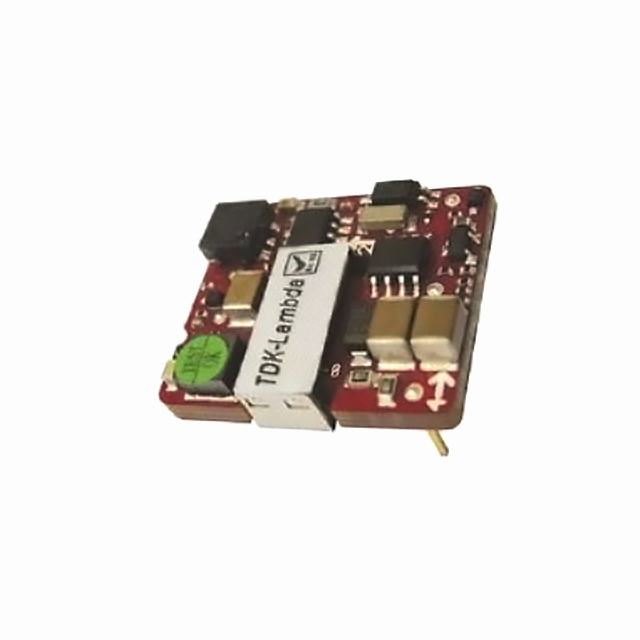

PXA15 Series
Manufacturer: TDK Corporation
Beta
⌘K
DC DC CONVERTER 5V 15W
| Part | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Isolation | Voltage - Input (Min) [Min] | Number of Outputs | Applications | Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Mounting Type | Efficiency | Power (Watts) | Current - Output (Max) [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 36 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 5 V | Through Hole | 87 % | 15 W | 3 A | Remote On/Off |
 TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 36 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 12 V | Through Hole | 87 % | 15 W | 1.25 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 9 V | 1 | ITE (Commercial) | Isolated Module | 36 V | 15 V | Through Hole | 86 % | 15 W | 1 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 18 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 5 V | Through Hole | 87 % | 15 W | 3 A | Remote On/Off |
 TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 18 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 12 V | Through Hole | 86 % | 15 W | 1.3 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 9 V | 1 | ITE (Commercial) | Isolated Module | 36 V | 5 V | Through Hole | 87 % | 15 W | 3 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 18 V | 1 | ITE (Commercial) | Isolated Module | 36 V | 12 V | Through Hole | 87 % | 15 W | 1.25 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 18 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 15 V | Through Hole | 86 % | 15 W | 1 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 18 V | 1 | ITE (Commercial) | Isolated Module | 75 V | 3.3 V | Through Hole | 85 % | 15 W | 4 A | Remote On/Off |
TDK Corporation | Active Low Enable | 85 °C | -40 C | 6-DIP Module | 2250 VDC | 9 V | 1 | ITE (Commercial) | Isolated Module | 36 V | 3.3 V | Through Hole | 85 % | 15 W | 4 A | Remote On/Off |
