TRM Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 35V33UF10% TOL ESR = 65

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Voltage - Rated	Features	Manufacturer Size Code	Grade	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Qualification	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

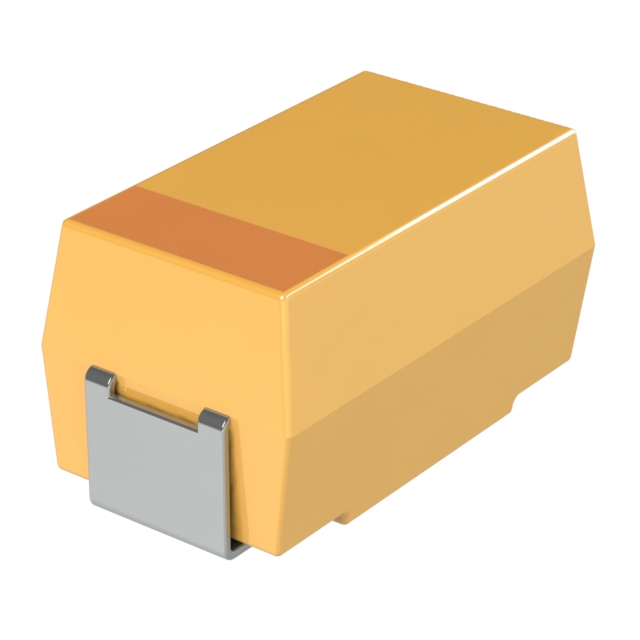

KYOCERA AVX TRME336K035R0065	-55 C	125 °C	33 ÁF	Molded	35 V	Automotive	E	Automotive	AEC-Q200	0.169 in	4.3 mm	2917 (7343 Metric)	10 %	0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	AEC-Q200	65 mOhm
KYOCERA AVX TRME336K035R0050	-55 C	125 °C	33 ÁF	Molded	35 V	Automotive	E	Automotive	AEC-Q200	0.169 in	4.3 mm	2917 (7343 Metric)	10 %	0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	AEC-Q200	50 mOhms

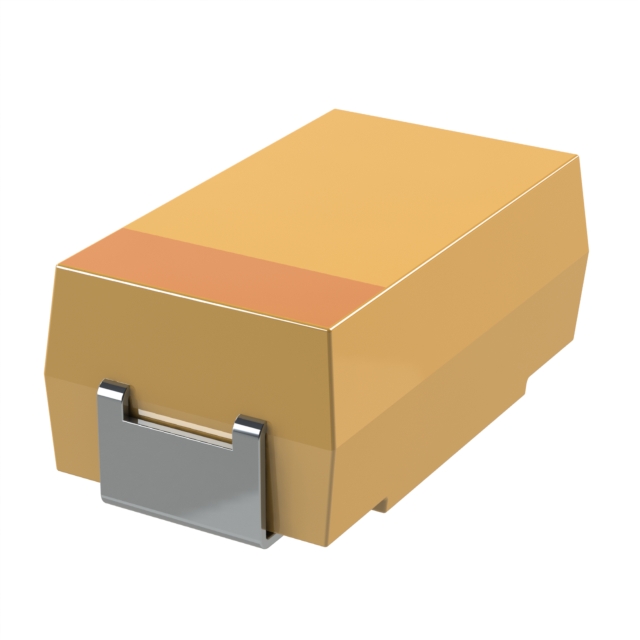

KYOCERA AVX TRMD476M020H0055	-55 C	125 °C	47 µF	Molded	20 V	Automotive	D	Automotive	AEC-Q200			2917 (7343 Metric)	20 %	0.169 "	7.3 mm	0.287 "	4.3 mm	Surface Mount	AEC-Q200	55 mOhm	0.122 in	3.1 mm
KYOCERA AVX TRME157M016H0030
