1513472 Series

Catalog

ANTENNAS UAM ASSEMBLY 500 MM CABLE BLACK

Part	Antenna Type	Termination	Height (Max) [z]	Height (Max) [z]	Features	Applications	VSWR	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Frequency Group	RF Family/Standard	Gain	Frequency (Center/Band)

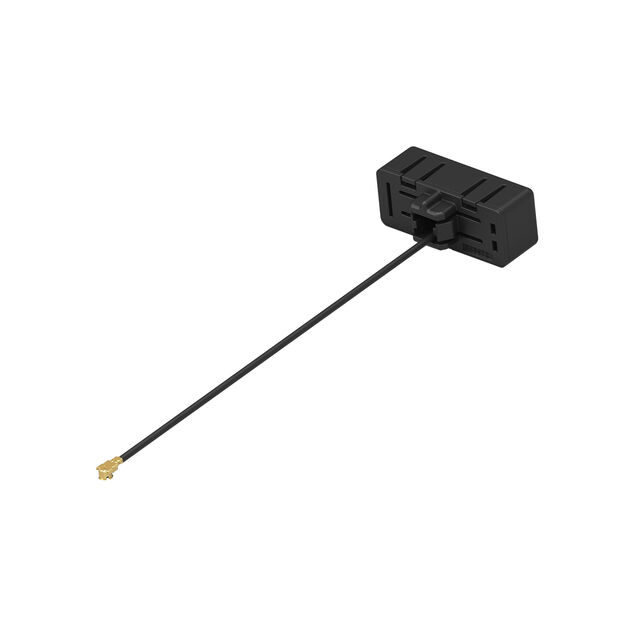

TE Connectivity AMP Connectors 2-1513472-4	Stamped Metal	MHF4L	0.394 in	10 mm	Cable - 500mm	802.11a/b/g/n Bluetooth Wi-Fi WLAN Zigbee™	3	2.4835 GHz 5.875 GHz	2.4 GHz 5.15 GHz	2	SHF UHF	802.15.4 Bluetooth WiFi	3 dBi	2.44175 GHz 5.5125 GHz

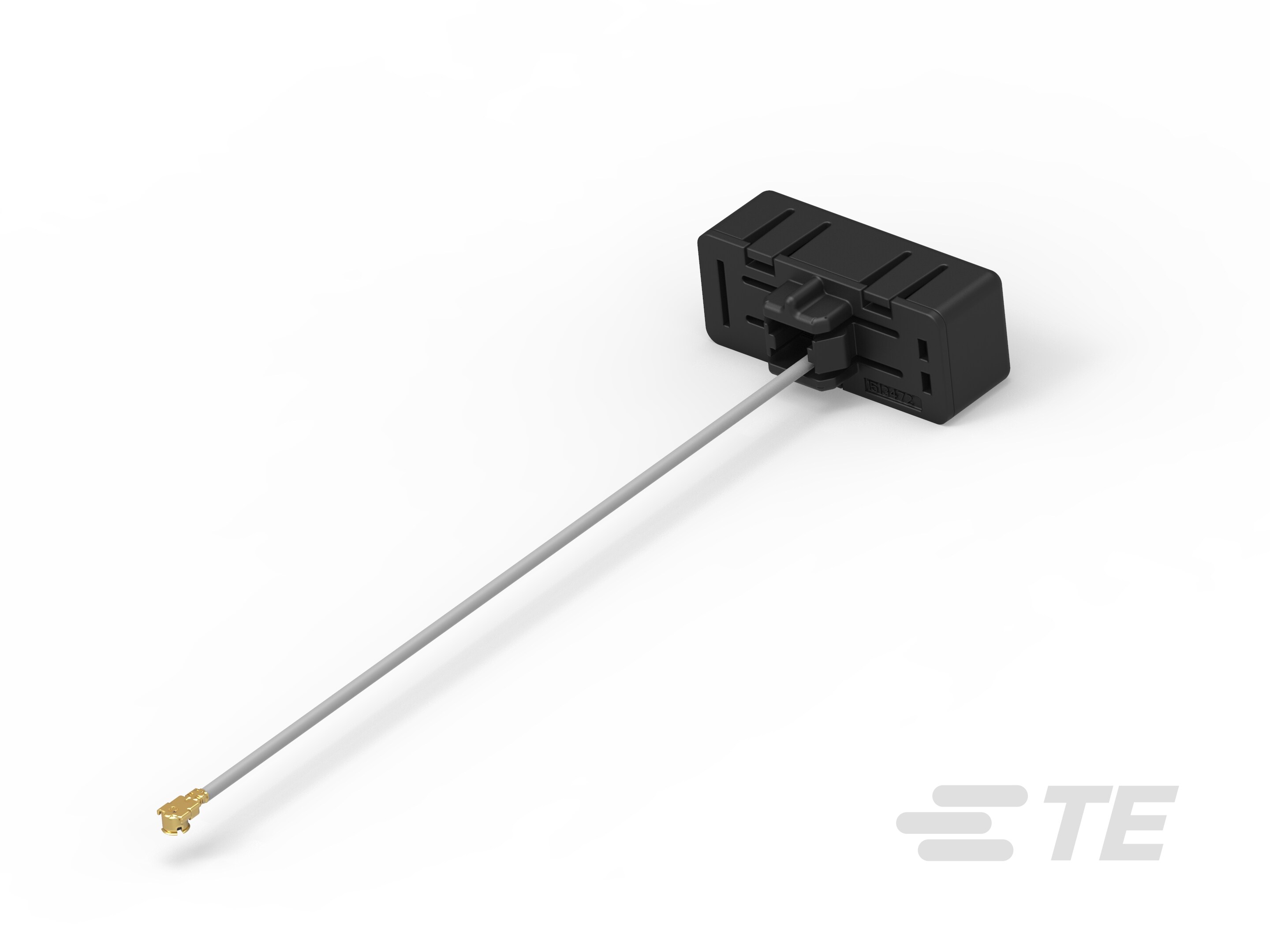

TE Connectivity AMP Connectors 2-1513472-5	Stamped Metal	MHF4L	0.394 in	10 mm	Cable - 500mm	802.11a/b/g/n Bluetooth Wi-Fi WLAN Zigbee™	3	2.4835 GHz 5.875 GHz	2.4 GHz 5.15 GHz	2	SHF UHF	802.15.4 Bluetooth WiFi	3 dBi	2.44175 GHz 5.5125 GHz

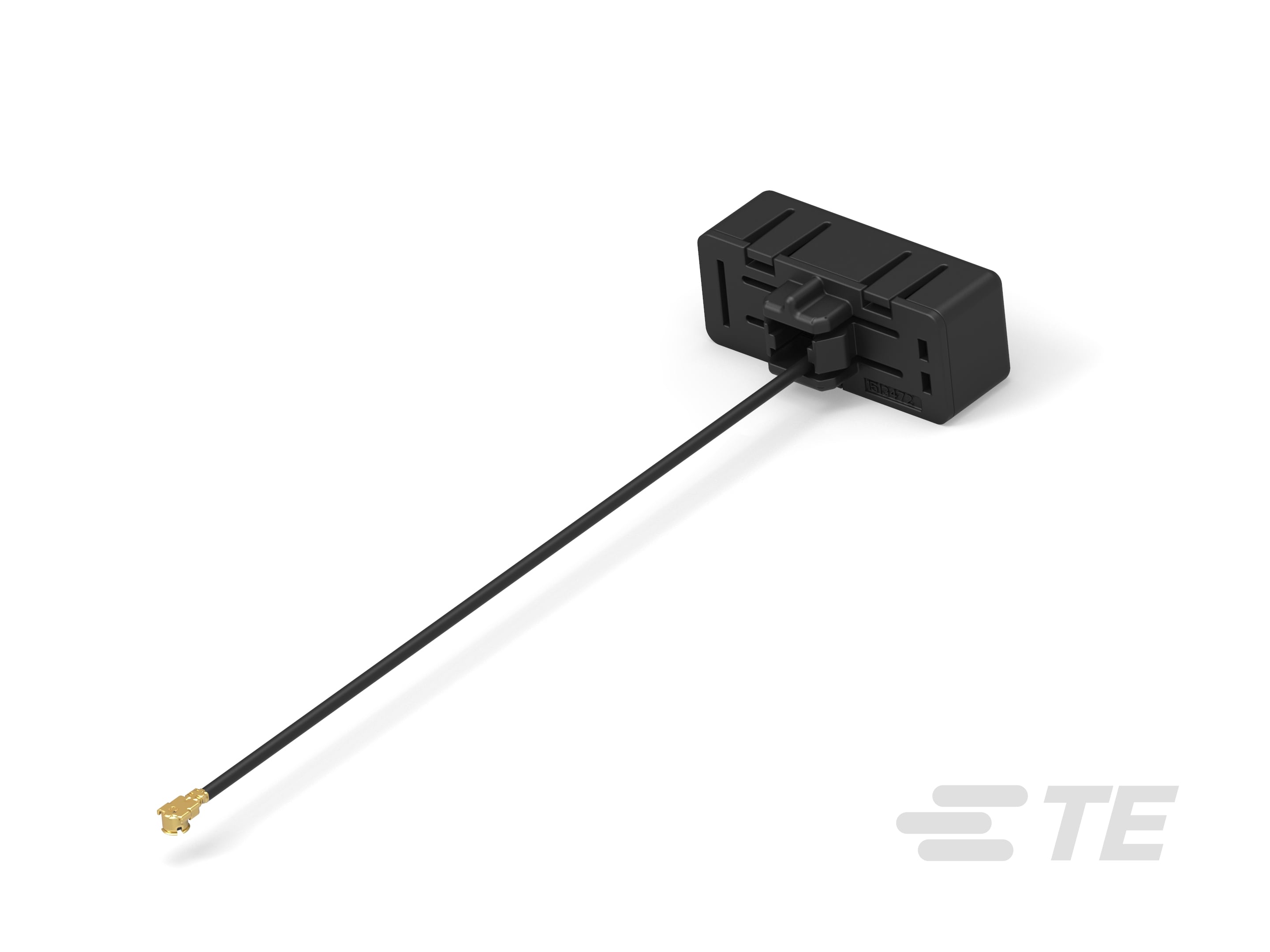

TE Connectivity AMP Connectors 2-1513472-6	Stamped Metal	MHF	0.394 in	10 mm	Cable - 500mm	802.11a/b/g/n Bluetooth Wi-Fi WLAN Zigbee™	3	2.4835 GHz 5.875 GHz	2.4 GHz 5.15 GHz	2	SHF UHF	802.15.4 Bluetooth WiFi	3 dBi	2.44175 GHz 5.5125 GHz
