ABS151 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACTION SPDT 2A 125V

Part	Differential Travel	Differential Travel	Circuit	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Switch Function	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Mechanical Life	Operating Position	Operating Position	Actuator Type	Ingress Protection	Voltage Rating - DC	Electrical Life	Operating Force	Pretravel	Pretravel	Overtravel [custom]	Overtravel [custom]
Panasonic Electronic Components ABS1514409	0.031 in	0.8 mm	SPDT	PC Pin	2 A	125 V	Through Hole	On-Mom	1.2 mm	0.047 "	85 °C	-40 C	3.059 gf	5000000 Cycles	0.46 in	11.7 mm	Lever Simulated Roller	IP50 - Dust Protected	30 V	50000 Cycles	35 gf	0.11 in	2.8 mm

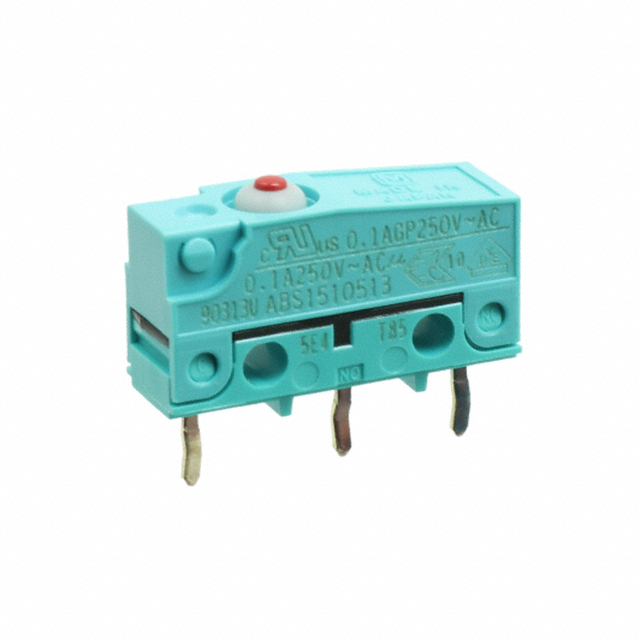

Panasonic Electronic Components ABS1510513	0.004 in	0.1 mm	SPDT	PC Pin	100 mA	125 V	Through Hole	On-Mom			85 °C	-40 C	20 gf	5000000 Cycles	0.33 in	8.4 mm	Round (Pin Plunger)	IP50 - Dust Protected	30 V	200000 Cycles	150 gf	0.024 in	0.6 mm	0.015 "	0.4 mm
Panasonic Electronic Components ABS1513519	0.04 in	1 mm	SPDT	PC Pin	100 mA	125 V	Through Hole	On-Mom			85 °C	-40 C	3.059 gf	5000000 Cycles	0.345 in	8.8 mm	Lever Straight	IP50 - Dust Protected	30 V	200000 Cycles		0.138 in	3.5 mm	0.062 "	1.6 mm
Panasonic Electronic Components ABS1512503	0.031 in	0.8 mm	SPDT	PC Pin	2 A	125 V	Through Hole	On-Mom	1.2 mm	0.047 "	85 °C	-40 C	3.5 gf	5000000 Cycles	0.345 in	8.8 mm	Lever Straight	IP50 - Dust Protected	30 V	50000 Cycles	55 gf	0.11 in	2.8 mm

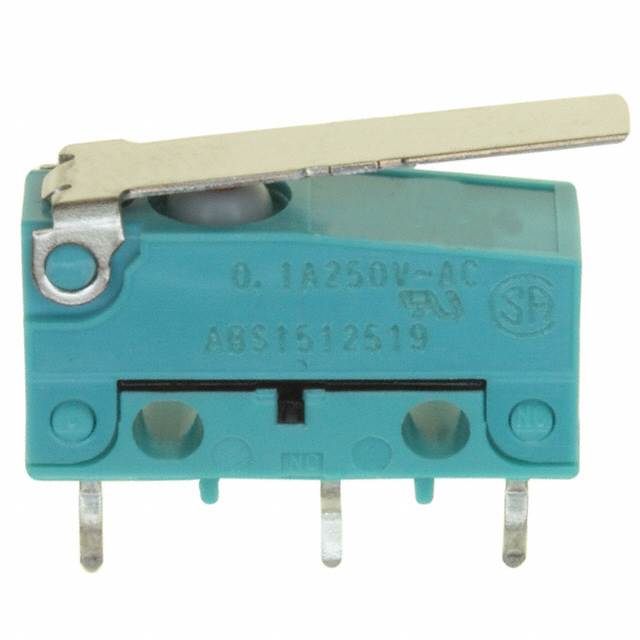

Panasonic Electronic Components ABS1512519	0.031 in	0.8 mm	SPDT	PC Pin	100 mA	125 V	Through Hole	On-Mom	1.2 mm	0.047 "	85 °C	-40 C	3.5 gf	5000000 Cycles	0.345 in	8.8 mm	Lever Straight	IP50 - Dust Protected	30 V	200000 Cycles	55 gf	0.11 in	2.8 mm

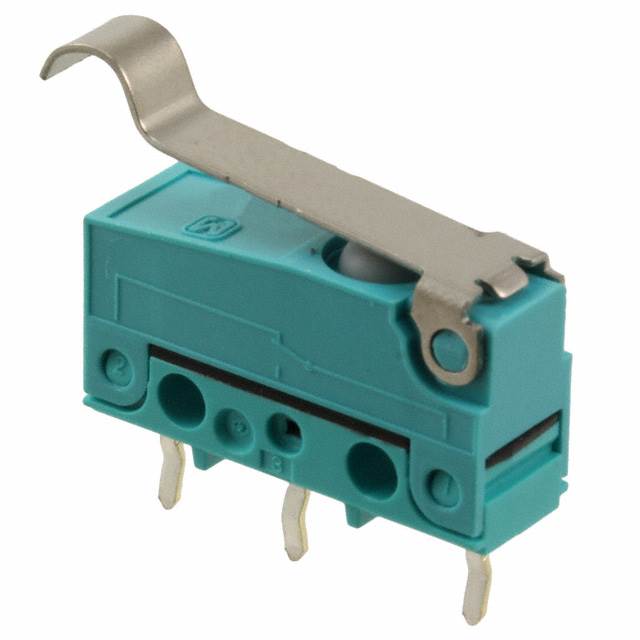

Panasonic Electronic Components ABS1514509	0.031 in	0.8 mm	SPDT	PC Pin	2 A	125 V	Through Hole	On-Mom	1.2 mm	0.047 "	85 °C	-40 C	3.5 gf	5000000 Cycles	0.46 in	11.7 mm	Lever Simulated Roller	IP50 - Dust Protected	30 V	50000 Cycles	55 gf	0.11 in	2.8 mm
Panasonic Electronic Components ABS1514513	0.031 in	0.8 mm	SPDT	PC Pin	100 mA	125 V	Through Hole	On-Mom	1.2 mm	0.047 "	85 °C	-40 C	3.5 gf	5000000 Cycles	0.46 in	11.7 mm	Lever Simulated Roller	IP50 - Dust Protected	30 V	200000 Cycles	55 gf	0.11 in	2.8 mm
Panasonic Electronic Components ABS1513503	0.04 in	1 mm	SPDT	PC Pin	2 A	125 V	Through Hole	On-Mom			85 °C	-40 C	3.059 gf	5000000 Cycles	0.345 in	8.8 mm	Lever Straight	IP50 - Dust Protected	30 V	50000 Cycles		0.138 in	3.5 mm	0.062 "	1.6 mm
Panasonic Electronic Components ABS1510509	0.004 in	0.1 mm	SPDT	PC Pin	2 A	125 V	Through Hole	On-Mom			85 °C	-40 C	20 gf	5000000 Cycles	0.33 in	8.4 mm	Round (Pin Plunger)	IP50 - Dust Protected	30 V	50000 Cycles	150 gf	0.024 in	0.6 mm	0.015 "	0.4 mm
