RPM23 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

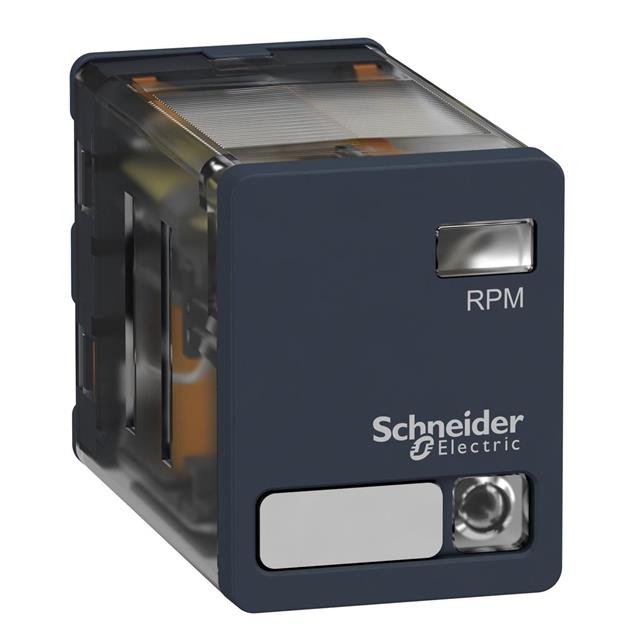

POWER RELAY, DPDT, 24 VAC, 15 A, ZELIO RPM SERIES, SOCKET
| Part | Coil Resistance | Must Operate Voltage | Features | Must Release Voltage | Contact Rating (Current) | Coil Current | Termination Style | Contact Material | Operate Time | Switching Voltage [Max] | Release Time | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Voltage | Relay Type | Contact Form | Approval Agency | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 177 Ohms | 19.2 VAC | Lighted Indicator | 3.6 VAC | 15 A | 135.6 mA | Plug In | Silver Nickel (AgNi) | 20 ms | 28 VDC 250 VAC | 20 ms | 420 W 3750 VA | 55 °C | -40 C | Socketable | 24 VAC | General Purpose | DPDT (2 Form C) | CSA EAC UL | Non Latching |
 SCHNEIDER ELECTRIC | 13.44 kOhms | 88 VDC | Lighted Indicator | 11 VDC | 15 A | 8.2 mA | Plug In | Silver Nickel (AgNi) | 20 ms | 28 VDC 250 VAC | 20 ms | 420 W 3750 VA | 55 °C | -40 C | Socketable | 110 VDC | General Purpose | DPDT (2 Form C) | CSA EAC UL | Non Latching |
SCHNEIDER ELECTRIC | 640 Ohms | 19.2 VDC | Lighted Indicator | 2.4 VDC | 15 A | 0.0375 A | Plug In | Silver Nickel (AgNi) | 20 ms | 28 VDC 250 VAC | 20 ms | 420 W 3750 VA | 55 °C | -40 C | Socketable | 24 VDC | General Purpose | DPDT (2 Form C) | CSA EAC UL | Non Latching |
