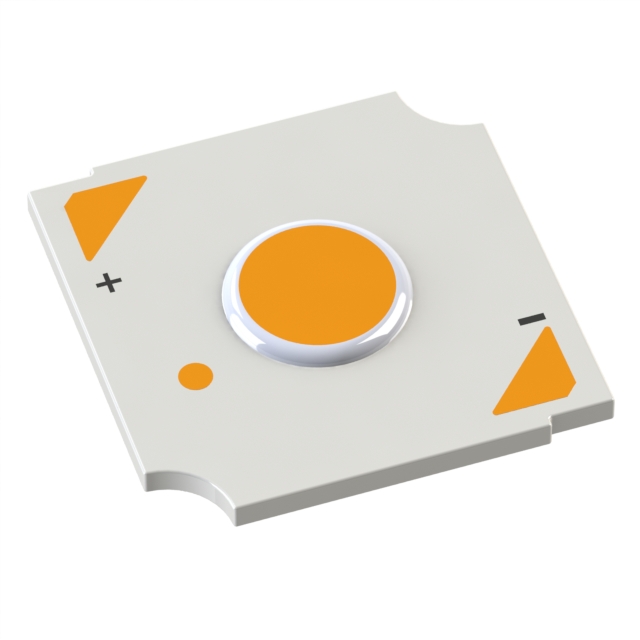

CXM-4 Series

Catalog

CXM-4-40-70-36-TE60-F7-2

Part	Lumens/Watt @ Current - Test	Color	Type	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Current - Max [Max]	Temperature - Test	Luminous Flux @ Current/Temperature	Viewing Angle	Lens Type	CRI (Color Rendering Index)	Height [z]	CCT (K)	CCT (K)	Size / Dimension [y]	Size / Dimension [x]
Luminus Devices Inc. CXM-4-40-70-36-TE60-F7-2
Luminus Devices Inc. CXM-4-40-80-36-TE60-F7-2	142 lm/W	Neutral White	Chip On Board (COB)	4.5 mm	33.2 V	120 mA	Square	400 mA	85 °C	565 lm	120 °	Flat	80	1.4 mm	4000 K	2-Step MacAdam Ellipse	13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-40-70-18-TE60-F7-2
Luminus Devices Inc. CXM-4-50-80-18-TE60-F7-3	144 lm/W	Cool White	Chip On Board (COB)	4.5 mm	16.6 V	240 mA	Square	800 mA	85 °C	575 lm	120 °	Flat	80	1.4 mm	5000 K	3-Step MacAdam Ellipse	13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-30-90-18-TE60-F7-2	119 lm/W	Warm White	Chip On Board (COB)	4.5 mm	16.6 V	240 mA	Square	800 mA	85 °C	475 lm	120 °	Flat	90	1.4 mm	3000 K		13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-35-95-18-TE60-F7-2	105 lm/W	Warm White	Chip On Board (COB)	4.5 mm	16.6 V	240 mA	Square	800 mA	85 °C	420 lm	120 °	Flat	95	1.4 mm	3500 K		13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-50-90-9-TE60-F7-2		Cool White	Chip On Board (COB)	4.5 mm	8.3 V	480 mA	Square	1.6 A	85 °C	495 lm	120 °	Flat	90	1.4 mm	5000 K	2-Step MacAdam Ellipse	13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-30-90-36-TE60-F7-2	119 lm/W	Warm White	Chip On Board (COB)	4.5 mm	33.2 V	120 mA	Square	400 mA	85 °C	475 lm	120 °	Flat	90	1.4 mm	3000 K		13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-35-95-9-TE60-F7-3	105 lm/W	Warm White	Chip On Board (COB)	4.5 mm	8.3 V	480 mA	Square	1.6 A	85 °C	420 lm	120 °	Flat	95	1.4 mm	3500 K	3-Step MacAdam Ellipse	13.5 mm	13.5 mm
Luminus Devices Inc. CXM-4-57-70-9-TE60-F7-3
