1969597 Series

Catalog

CONN RCPT HSG 22POS 4.20MM

Part	Note	Contact Termination	Insulation Material	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Color	Mounting Type	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions

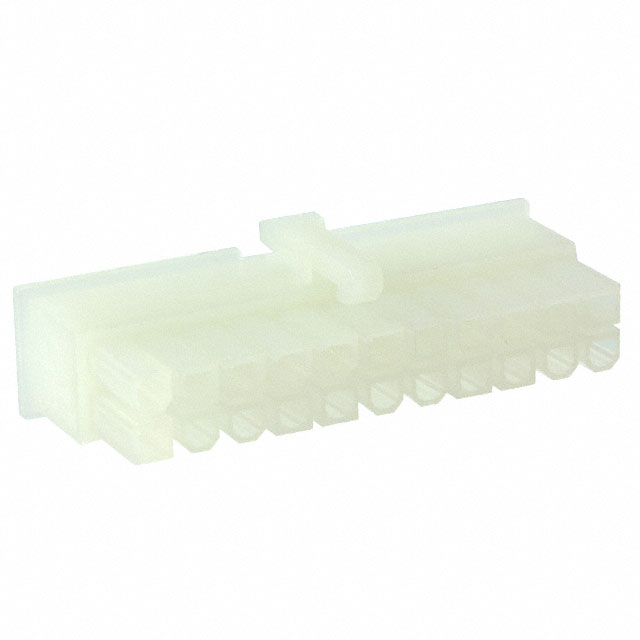

TE Connectivity Raychem Cable Protection 2-1969597-2	Contacts Not Included	Crimp	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	4.2 mm	0.165 in	2	Receptacle	Natural	Free Hanging (In-Line)	4.2 mm	0.165 in	-40 °C	105 ░C	22 positions
TE Connectivity Raychem Cable Protection 1-1969597-4	Contacts Not Included	Crimp	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	4.2 mm	0.165 in	2	Receptacle	Natural	Free Hanging (In-Line)	4.2 mm	0.165 in	-40 °C	105 ░C	14

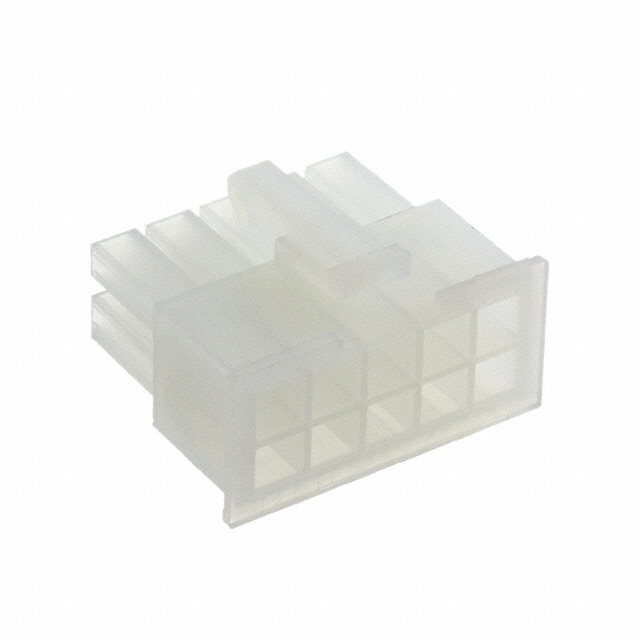

TE Connectivity Raychem Cable Protection 1-1969597-0	Contacts Not Included	Crimp	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	4.2 mm	0.165 in	2	Receptacle	Natural	Free Hanging (In-Line)	4.2 mm	0.165 in	-40 °C	105 ░C	10

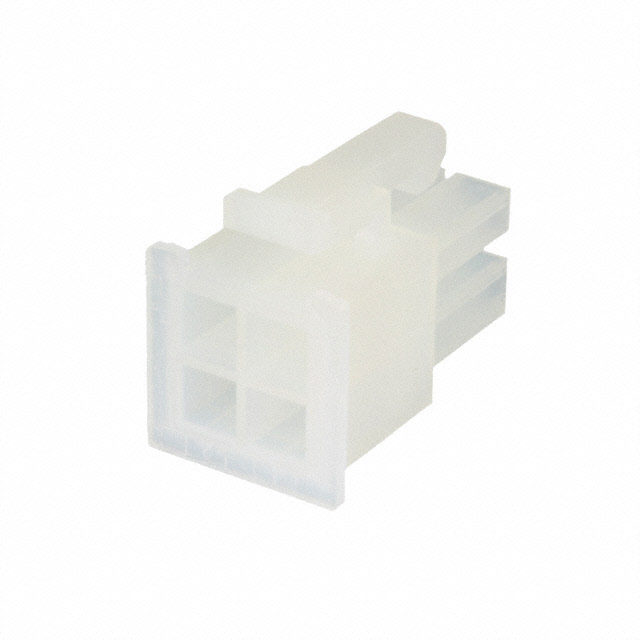

TE Connectivity Raychem Cable Protection 1969597-4	Contacts Not Included	Crimp	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock	4.2 mm	0.165 in	2	Receptacle	Natural	Free Hanging (In-Line)	4.2 mm	0.165 in	-40 °C	105 ░C	4
