9504-1213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

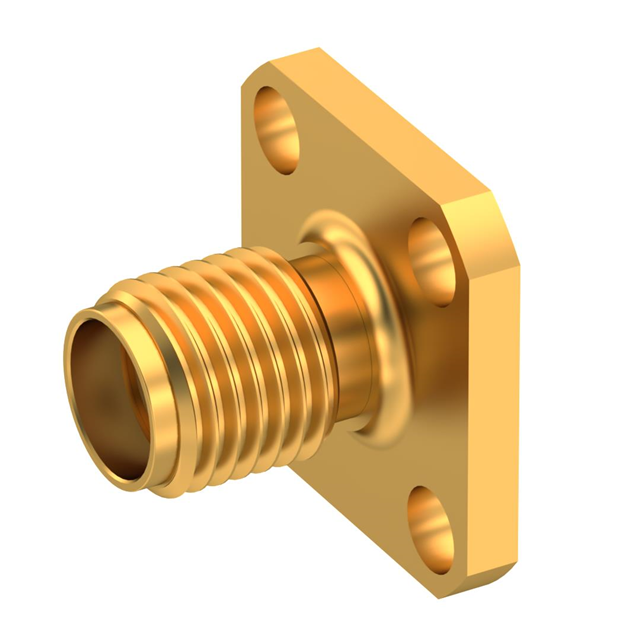

SMA / STRAIGHT JACK FEMALE GOLD
| Part | Center Contact Plating | Body Finish | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Housing Color | Fastening Type | Number of Ports | Connector Type | Shield Termination | Impedance | Contact Termination | Connector Style | Frequency - Max [Max] | Center Contact Material | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Stainless Steel | Gold | Threaded | 1 | Female Socket Jack | Screw | 50 Ohms | Compression | SMA | 18 GHz | Beryllium Copper | Panel Mount | Flange |
