G1LX Series
Manufacturer: Kycon, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

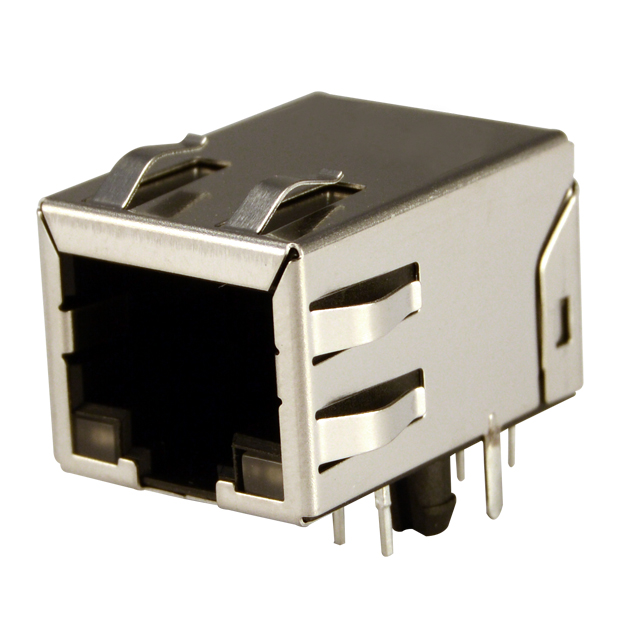

CONN JACK 1PORT PCB
| Part | Number of Ports | Height Above Board | Mounting Type | Contact Material | Contact Finish | Applications | Number of Cores per Jack | Termination | Connector Type | Shielding | Tab Direction | LED Color | Number of Rows | Features | Orientation Angle | Orientation Direction | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Shield Material | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 1 | 0.526 in | Through Hole | Copper Alloy | Gold | 10/100 Base-T | 4 | Solder | RJ45 | EMI Finger Shielded | Down | Yellow - Green | 1 | Board Lock | 90 ° | Right | 70 °C | 0 °C | 0 | Flash | Flash | Stainless Steel | Thermoplastic |
