KISSLING Series G13 Series

Catalog

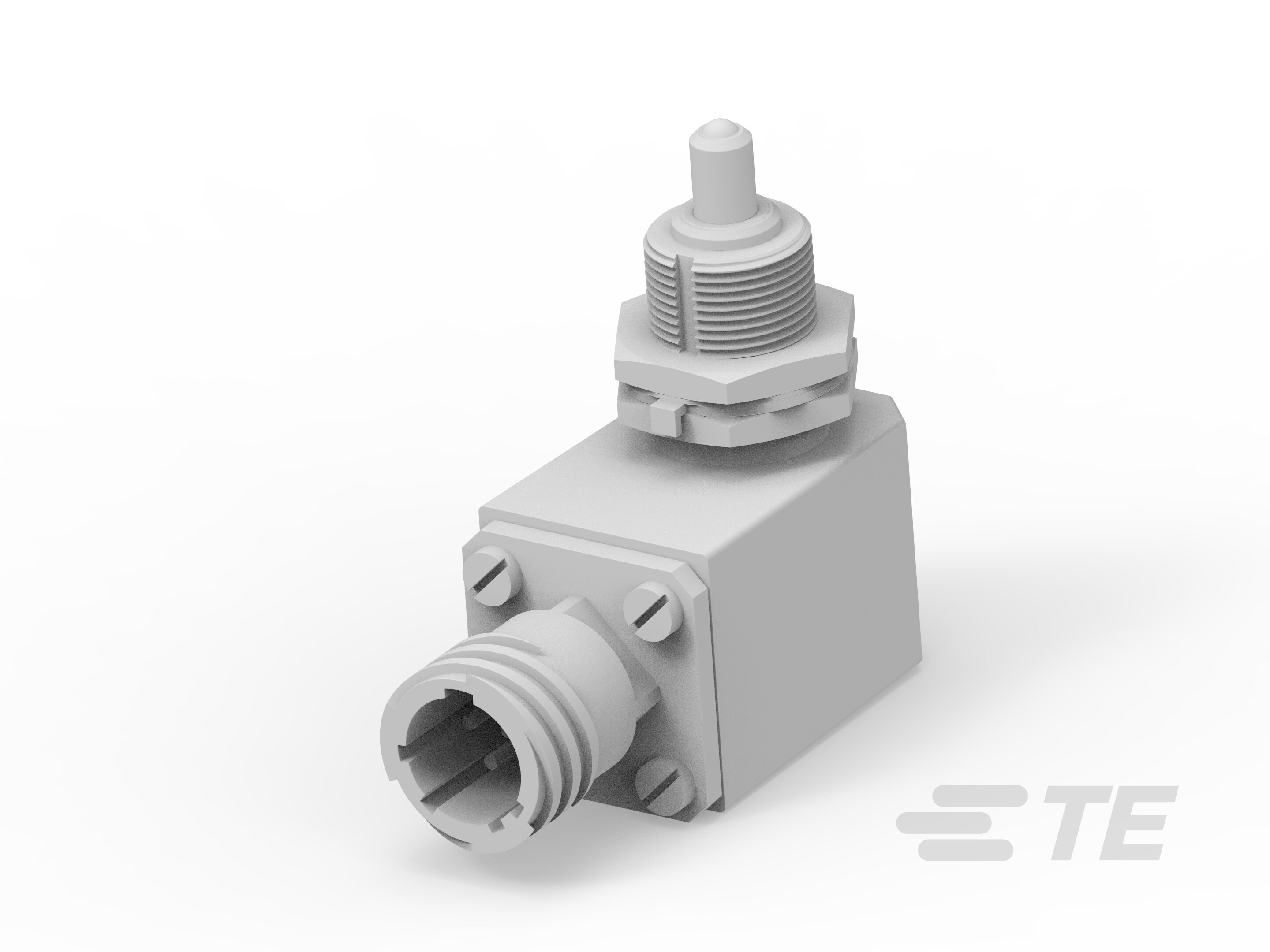

LIMIT SWITCH G13-01-1833

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Mechanical Life	Electrical Life	Voltage Rating - DC	Circuit	Ingress Protection	Mounting Type	Operating Force	Switch Function	Differential Travel	Differential Travel	Pretravel	Pretravel
TE Connectivity AMP Connectors G13-01-1833

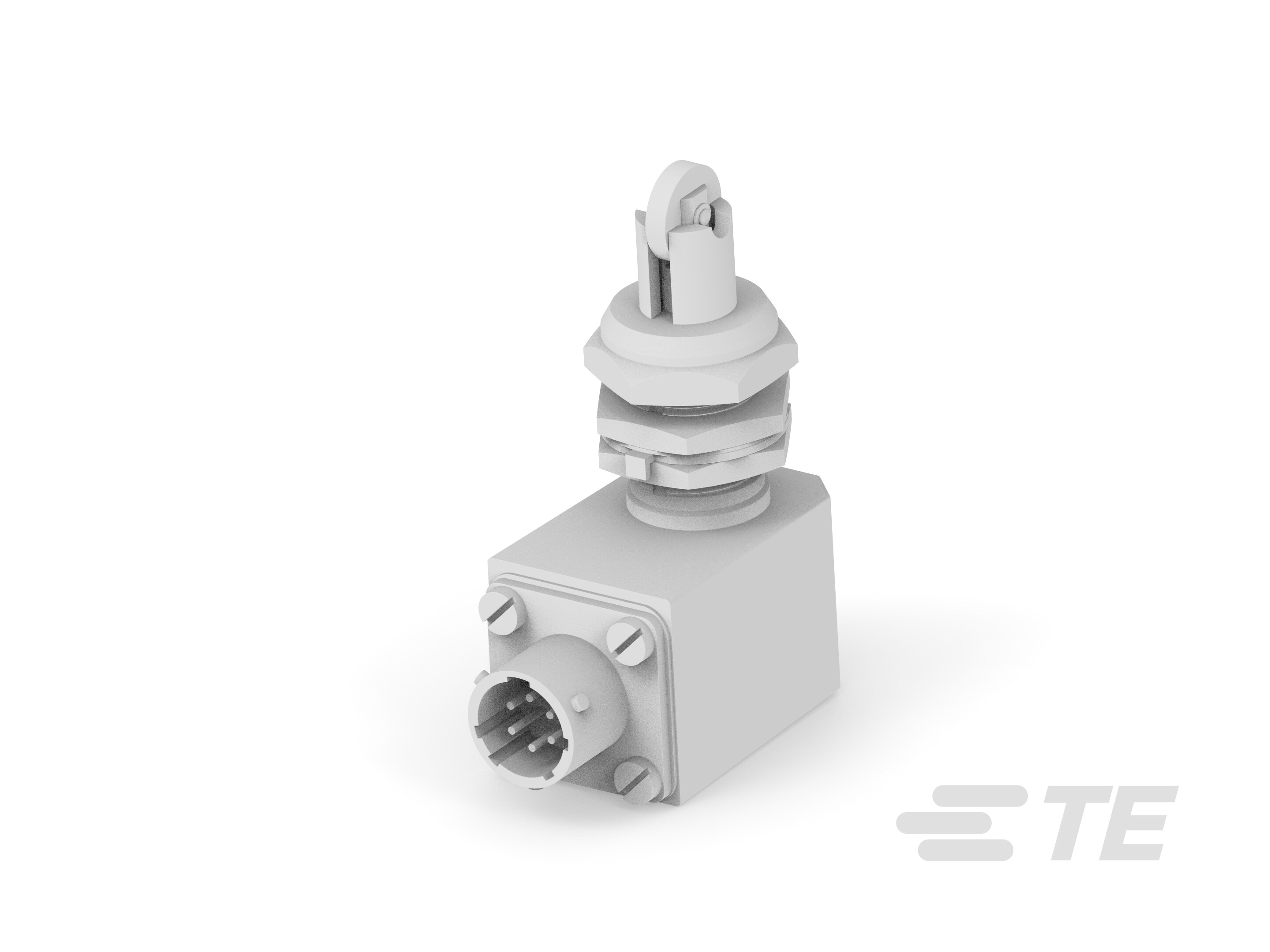

TE Connectivity AMP Connectors G13-01-1536	Roller Plunger	-55 C	85 °C	7 A	Screw Terminal	100000 Cycles	100000 Cycles	28 V	SPDT	IP67 - Dust Tight Waterproof	Panel Mount	1530 gf	On-On
TE Connectivity AMP Connectors G13-01-1809	Round (Pin Plunger)	-55 C	85 °C	1 A	Screw Terminal	100000 Cycles		28 V	SPDT		Panel Mount	3060 gf	On-On	0.2 mm	0.008 in

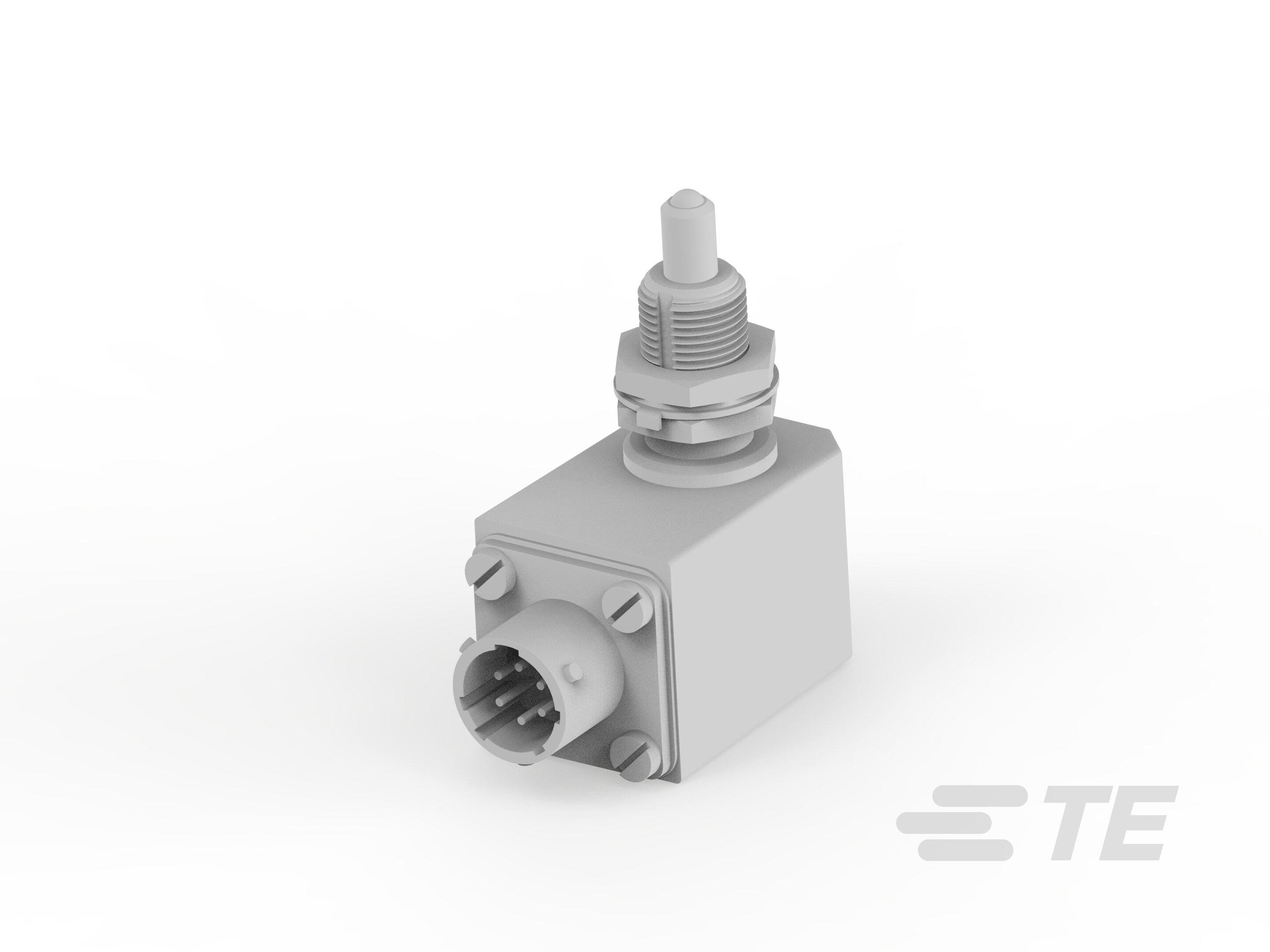

TE Connectivity AMP Connectors G13-01-1240
TE Connectivity AMP Connectors G13-01-1220	Mushroom Button	-55 C	85 °C	7 A	Screw Terminal	100000 Cycles	100000 Cycles	28 V	DPDT	IP67 - Dust Tight Waterproof	Panel Mount	6118.3 gf	On-On
TE Connectivity AMP Connectors G13-01-1325	Push-Pull Plunger	-55 C	85 °C	7 A	Screw Terminal	10000 Steps		28 V	DPDT	IP67 - Dust Tight Waterproof	Panel Mount	6118.3 gf	On-On			0.1 in	2.5 mm

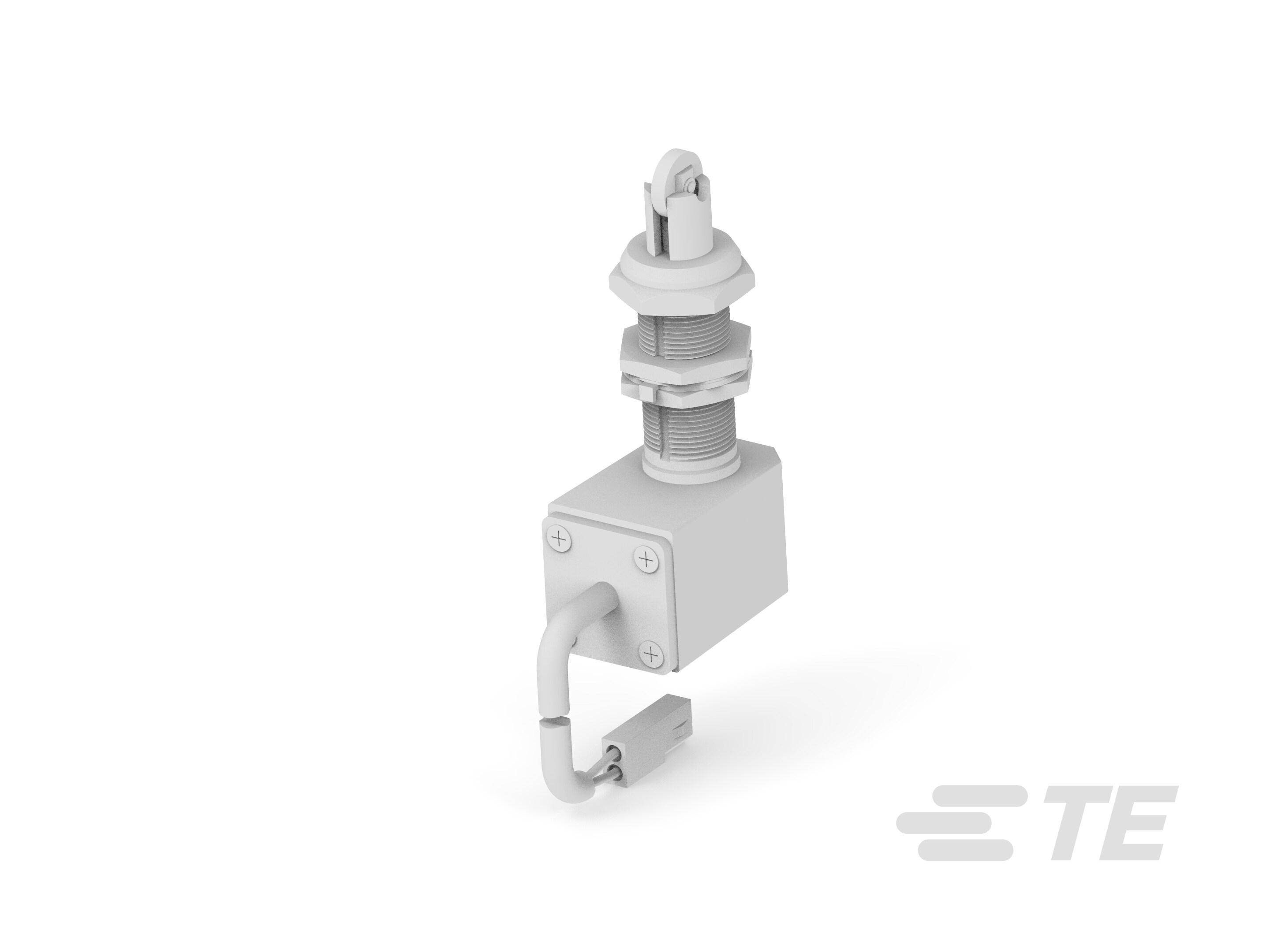

TE Connectivity AMP Connectors G13-01-1700	Roller Plunger	-55 C	85 °C	7 A	Screw Terminal	100000 Cycles	100000 Cycles	28 V	SPDT	IP67 - Dust Tight Waterproof	Panel Mount	3060 gf	On-On

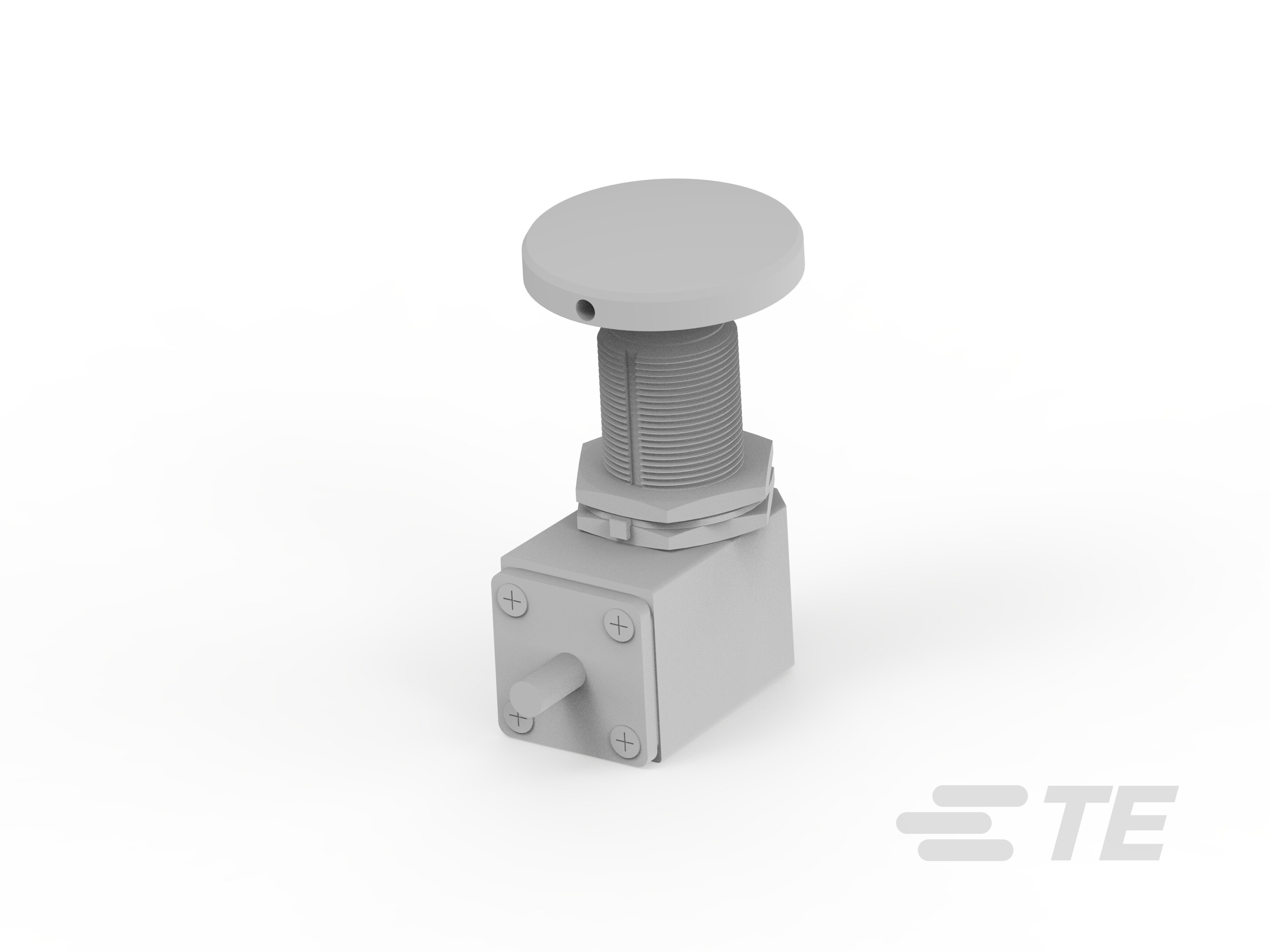

TE Connectivity AMP Connectors G13-01-1530
TE Connectivity AMP Connectors G13-01-1206
TE Connectivity AMP Connectors G13-01-1801	Mushroom Button	-55 C	85 °C	7 A	Screw Terminal	100000 Cycles	100000 Cycles	28 V	SPDT	IP67 - Dust Tight Waterproof	Panel Mount	6118.3 gf	On-On
