HMC505 Series

VCO SMT w/Buffer Amplifier, 6.8 - 7.4 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

VCO SMT w/Buffer Amplifier, 6.8 - 7.4 GHz

Part	Package / Case	Mounting Type	Current - Supply	Frequency [Min]	Frequency [Max]	Supplier Device Package	Voltage - Supply	RF Type	Supplied Contents	For Use With/Related Products	Type	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated HMC505LP4TR	24-VFQFN Exposed Pad	Surface Mount	80 mA	6.8 GHz	7.4 GHz	24-QFN (4x4)	3 V	VSAT
Analog Devices Inc./Maxim Integrated HMC505LP4E	24-VFQFN Exposed Pad	Surface Mount	80 mA	6.8 GHz	7.4 GHz	24-QFN (4x4)	3 V	VSAT
Analog Devices Inc./Maxim Integrated HMC505LP4	24-VFQFN Exposed Pad	Surface Mount	80 mA	6.8 GHz	7.4 GHz	24-QFN (4x4)	3 V	VSAT

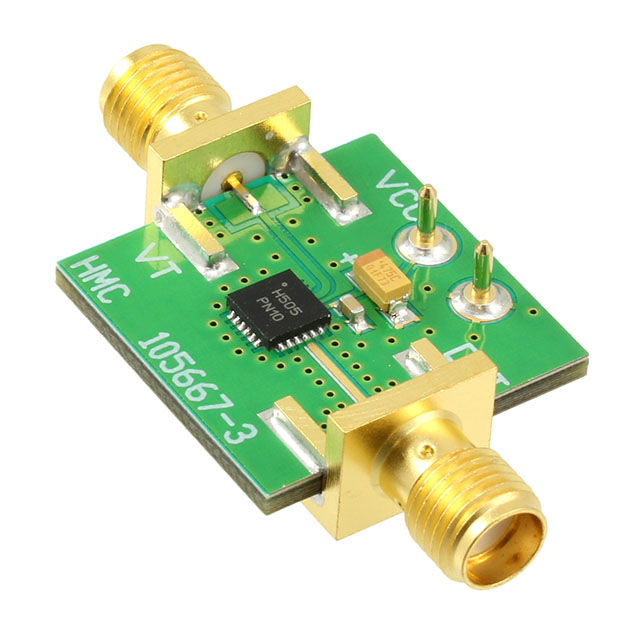

Analog Devices Inc./Maxim Integrated 105706-HMC505LP4				6.8 GHz	7.4 GHz				Board(s)	HMC505LP4	Voltage Controlled Oscillator (VCO)	Board(s)	HMC505LP4
Analog Devices Inc./Maxim Integrated HMC505LP4ETR	24-VFQFN Exposed Pad	Surface Mount	80 mA	6.8 GHz	7.4 GHz	24-QFN (4x4)	3 V	VSAT

Catalog

VCO SMT w/Buffer Amplifier, 6.8 - 7.4 GHz

Description

The HMC505LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO with an integrated resonator, negative resistance device, varactor diode, and buffer amplifier. Covering 6.8 to 7.4 GHz, the VCO’s phase noise performance is excellent over temperature, shock and vibration due to the oscillator’s monolithic structure. Power output is +11 dBm typical from a single supply of +3V @ 80 mA. The voltage controlled oscillator is packaged in a leadless QFN 4x4 mm surface mount package.APPLICATIONSVSAT & Microwave RadioTest Equipment & Industrial ControlsMilitary
