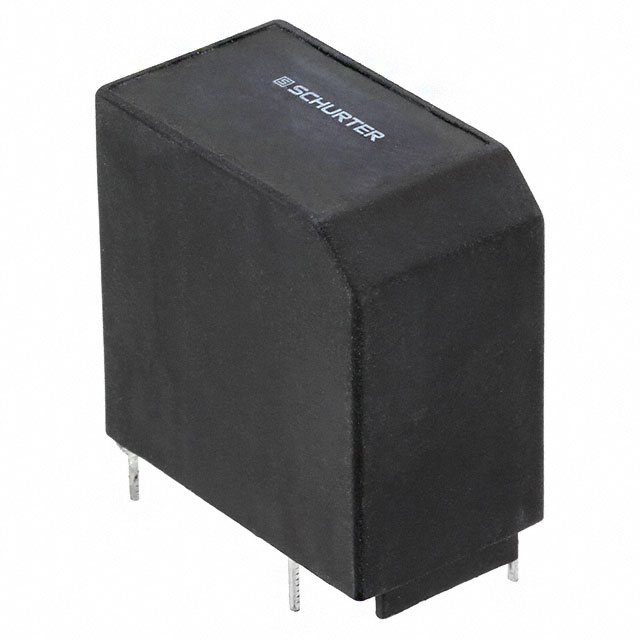

DLH-31 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FIXED IND 5.5MH 600MA 3.6 OHM TH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | DC Resistance (DCR) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [z] | Mounting Type | Package / Case | Tolerance | Shielding | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 125 °C | -40 C | 600 mA | 3.6 Ohm | 1.299 in | 33 mm | Through Hole | 4 Leads Horizontal Radial | 15 % | Shielded | 5.5 mH | 1.24 in | 18.5 mm | 0.728 in | 31.5 mm |
SCHURTER Inc. | 125 °C | -40 C | 6.3 A | 23 mOhm | 1.299 in | 33 mm | Through Hole | 4 Leads Horizontal Radial | 15 % | Shielded | 50 µH | 1.24 in | 18.5 mm | 0.728 in | 31.5 mm |
