TPS7B70-Q1 Series

Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with RESET with delay

Catalog

Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with RESET with delay

Part	Protection Features	Mounting Type	Number of Regulators	Voltage Dropout (Max) [Max]	Output Configuration	Grade	Package / Case	Package / Case	PSRR [Min]	PSRR [Max]	Current - Output	Supplier Device Package	Voltage - Output (Min/Fixed)	Qualification	Current - Quiescent (Iq)	Output Type	Operating Temperature [Min]	Operating Temperature [Max]

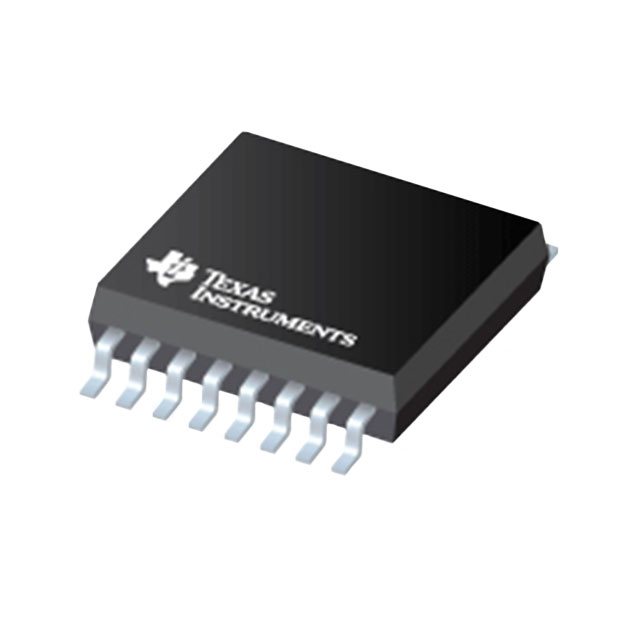

Texas Instruments TPS7B7050QPWPRQ1	Over Current Over Temperature	Surface Mount	1	0.4 V	Positive	Automotive	16-PowerTSSOP	0.173 in 4.4 mm Width	40 dB 100 Hz	60 dB 100 kHz	300 mA	16-HTSSOP	5 V	AEC-Q100	29.6 µA	1.81 mOhm	-40 °C	125 °C
Texas Instruments TPS7B7033QPWPRQ1	Over Current Over Temperature	Surface Mount	1	0.4 V	Positive	Automotive	16-PowerTSSOP	0.173 in 4.4 mm Width	40 dB 100 Hz	60 dB 100 kHz	300 mA	16-HTSSOP	3.3 V	AEC-Q100	29.6 µA	1.81 mOhm	-40 °C	125 °C

Catalog

Automotive 300-mA, off-battery (40-V), low-IQ, low-dropout voltage regulator with RESET with delay

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BDevice Junction Temperature Range:–40°C to +150°CMaximum Output Current: 300 mA4-V to 40-V Wide VINInput-Voltage Range With up to 45-V TransientsFixed 3.3-V and 5-V OutputsMaximum Dropout Voltage: 400 mV at 300 mAStable With Output Capacitor in Wide Range of Capacitance (4.7 µF to 500 µF) and ESR (0.001 Ω to 20 Ω)Low Quiescent Current (I(Q))< 4 µA When EN is Low (Shutdown Mode)19 µA Typical at Light Loads With VINT HighFully Adjustable Power-Good Threshold and Power-Good Delay TimingLow Input-Voltage Tracking to UVLOIntegrated Fault ProtectionOverload Current-Limit ProtectionThermal Shutdown16-Pin HTSSOP PowerPAD™ PackageThermal Resistance (RθJA): 39.7°C/WQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C4BDevice Junction Temperature Range:–40°C to +150°CMaximum Output Current: 300 mA4-V to 40-V Wide VINInput-Voltage Range With up to 45-V TransientsFixed 3.3-V and 5-V OutputsMaximum Dropout Voltage: 400 mV at 300 mAStable With Output Capacitor in Wide Range of Capacitance (4.7 µF to 500 µF) and ESR (0.001 Ω to 20 Ω)Low Quiescent Current (I(Q))< 4 µA When EN is Low (Shutdown Mode)19 µA Typical at Light Loads With VINT HighFully Adjustable Power-Good Threshold and Power-Good Delay TimingLow Input-Voltage Tracking to UVLOIntegrated Fault ProtectionOverload Current-Limit ProtectionThermal Shutdown16-Pin HTSSOP PowerPAD™ PackageThermal Resistance (RθJA): 39.7°C/W

Description

The TPS7B70-Q1 is a 300-mA, low-dropout linear regulator (LDO) that operates from an automotive battery. The device has only 19 µA of quiescent current at light loads. Thus, the TPS7B70-Q1 is an excellent selection to supply power to always-on components, such as microcontrollers (MCUs) and controller area network (CAN) transceivers. The input voltage range of the TPS7B70-Q1 extends thru 40 V. This voltage helps the device withstand transient conditions, such as load-dump. The device also has a power good (PG) pin to tell the system when the output voltage is in regulation. To achieve the necessary operation, you can adjust the PG threshold voltage and delay. The threshold voltage of the PG signal is adjusted through external resistors. Adjust the delay with an external capacitor. This device operates in ambient temperatures from –40°C to +125°C, and with junction temperatures from –40°C to +150°C. This device also has a thermally conductive package that enables sustained operation despite significant dissipation across the device, a typical property of off-battery operation. These features, along with included current limit and thermal shutdown protection, make the TPS7B70-Q1 an excellent selection to supply power to automotive system components. The TPS7B70-Q1 is a 300-mA, low-dropout linear regulator (LDO) that operates from an automotive battery. The device has only 19 µA of quiescent current at light loads. Thus, the TPS7B70-Q1 is an excellent selection to supply power to always-on components, such as microcontrollers (MCUs) and controller area network (CAN) transceivers. The input voltage range of the TPS7B70-Q1 extends thru 40 V. This voltage helps the device withstand transient conditions, such as load-dump. The device also has a power good (PG) pin to tell the system when the output voltage is in regulation. To achieve the necessary operation, you can adjust the PG threshold voltage and delay. The threshold voltage of the PG signal is adjusted through external resistors. Adjust the delay with an external capacitor. This device operates in ambient temperatures from –40°C to +125°C, and with junction temperatures from –40°C to +150°C. This device also has a thermally conductive package that enables sustained operation despite significant dissipation across the device, a typical property of off-battery operation. These features, along with included current limit and thermal shutdown protection, make the TPS7B70-Q1 an excellent selection to supply power to automotive system components.
