2842155 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 12P,2MM,BRK HDR,DRRT,2.8,0.38AU,TB W/CAP

Part	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Insulation Material	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Voltage Rating	Shrouding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Contact Shape	Insulation Color	Fastening Type	Number of Positions	Number of Positions Loaded	Features	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating

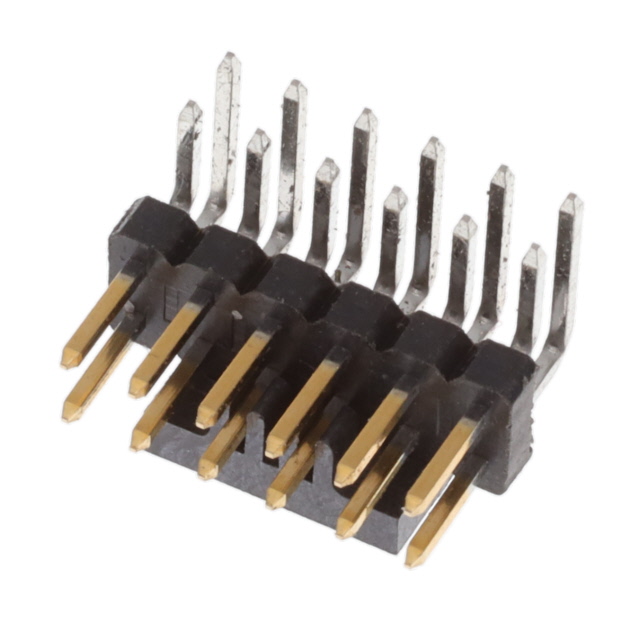

TE Connectivity Raychem Cable Protection 2842155-6	Solder	0.079 in	2 mm	2	Through Hole Right Angle	0.11 in	2.79 mm	Thermoplastic	2 A	Tin	125 °C	-40 °C	0.079 in	2 mm	UL94 V-0	125 VAC	Unshrouded	Breakaway Header	15 µin	0.38 µm	2 çm	78.7 çin	Copper Alloy	Male Pin	Square	Black	Push-Pull	12	All	Pick and Place	4 mm	0.157 in	1.5 mm	0.059 "	Gold
TE Connectivity Raychem Cable Protection 2842155-4	Solder	0.079 in	2 mm	2	Through Hole Right Angle	0.11 in	2.79 mm	Thermoplastic	2 A	Tin	125 °C	-40 °C	0.079 in	2 mm	UL94 V-0	125 VAC	Unshrouded	Breakaway Header	15 µin	0.38 µm	2 çm	78.7 çin	Copper Alloy	Male Pin	Square	Black	Push-Pull	8	All	Pick and Place	4 mm	0.157 in	1.5 mm	0.059 "	Gold
TE Connectivity Raychem Cable Protection 2842155-7	Solder	0.079 in	2 mm	2	Through Hole Right Angle	0.11 in	2.79 mm	Thermoplastic	2 A	Tin	125 °C	-40 °C	0.079 in	2 mm	UL94 V-0	125 VAC	Unshrouded	Breakaway Header	15 µin	0.38 µm	2 çm	78.7 çin	Copper Alloy	Male Pin	Square	Black	Push-Pull	14	All	Pick and Place	4 mm	0.157 in	1.5 mm	0.059 "	Gold

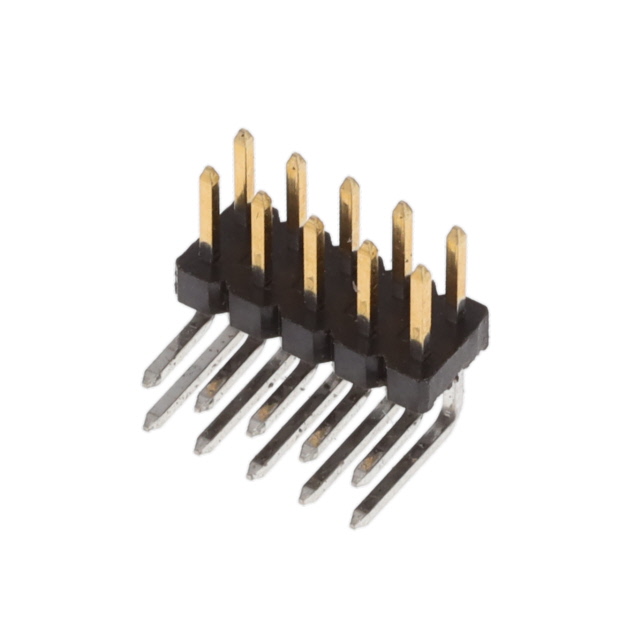

TE Connectivity Raychem Cable Protection 2842155-5	Solder	0.079 in	2 mm	2	Through Hole Right Angle	0.11 in	2.79 mm	Thermoplastic	2 A	Tin	125 °C	-40 °C	0.079 in	2 mm	UL94 V-0	125 VAC	Unshrouded	Breakaway Header	15 µin	0.38 µm	2 çm	78.7 çin	Copper Alloy	Male Pin	Square	Black	Push-Pull	10	All	Pick and Place	4 mm	0.157 in	1.5 mm	0.059 "	Gold
