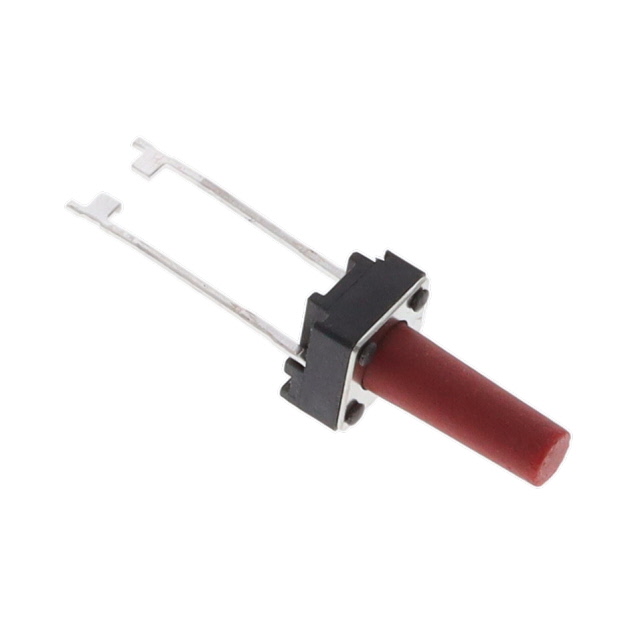

TL59D Series
Manufacturer: E-Switch
Beta
⌘K
MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; THT; NONE; 2.55N; 13MM
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Orientation | Termination Style | Actuator Height off PCB, Vertical | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating @ Voltage | Outline [x] | Outline [y] | Switch Function | Circuit | Illumination | Operating Force | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.25 mm | Top Actuated | PC Pin | 13 mm | -20 ░C | 70 °C | 0.05 A 12 VDC | 6.2 mm | 6.2 mm | Off-Mom | SPST-NO | Non-Illuminated | 260 gf | Through Hole | Standard |
 E-Switch | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.25 mm | Top Actuated | PC Pin | 13 mm | -20 ░C | 70 °C | 0.05 A 12 VDC | 6.2 mm | 6.2 mm | Off-Mom | SPST-NO | Non-Illuminated | 160 gf | Through Hole | Standard |
