LCC12 Series

Catalog

TEM THERMOCYCLER 40X40X3.84MM

Part	Number of Stages	Qmax @ Th	Current - Max [Max]	Type	Features	Height [z]	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Delta Tmax @ Th	Resistance
Marlow Industries, Inc. LCC12-8-01S	1	71 W	7.4 A	TEC (Thermoelectric Cooler)	Lead Wires Sealed	4.23 mm	14.7 V	40.01 mm	40.01 mm	66 °C	1.6 Ohms

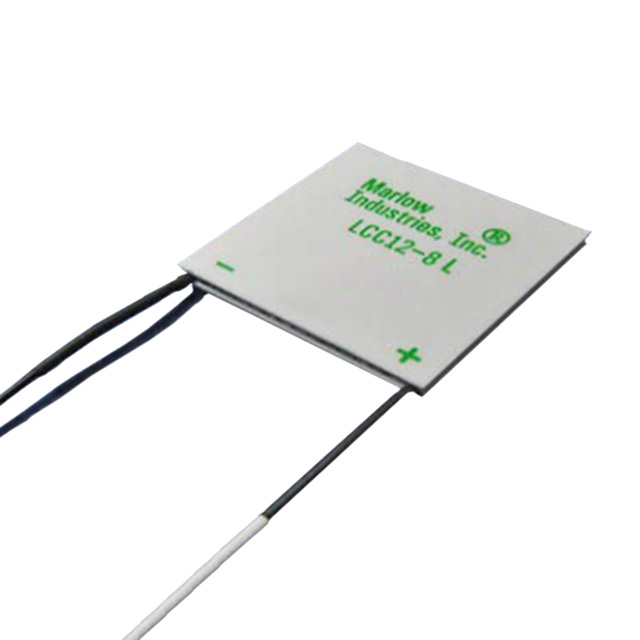

Marlow Industries, Inc. LCC12-8-01LS	1	71 W	7.4 A	TEC (Thermoelectric Cooler)	Lapped Lead Wires Sealed	3.94 mm	14.7 V	40.01 mm	40.01 mm	66 °C	1.6 Ohms

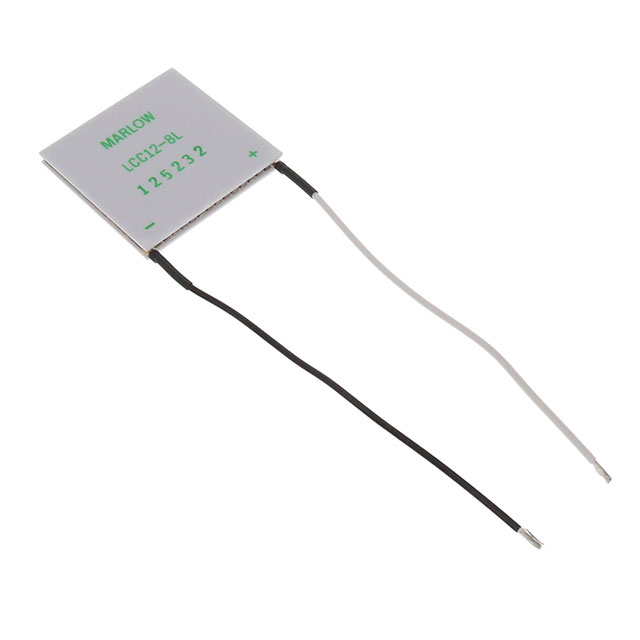

Marlow Industries, Inc. LCC12-8-01L	1	71 W	7.4 A	TEC (Thermoelectric Cooler)	Lapped Lead Wires	3.94 mm	14.7 V	40.01 mm	40.01 mm	66 °C	1.6 Ohms
Marlow Industries, Inc. LCC12-8-16LS	1	71 W	7.4 A	TEC (Thermoelectric Cooler)	Lapped Lead Wires Sealed	3.94 mm	14.7 V	40.01 mm	40.01 mm	66 °C	1.6 Ohms
Marlow Industries, Inc. LCC12-8-01	1	71 W	7.4 A	TEC (Thermoelectric Cooler)	Lead Wires	4.23 mm	14.7 V	40.01 mm	40.01 mm	66 °C	1.6 Ohms
