G125-304 Series

Catalog

13+13 POS. MALE DIL CABLE HOUSING, NO LATCHES ROHS COMPLIANT: YES

Part	Note	Contact Termination	Number of Positions	Features	Row Spacing	Row Spacing	Insulation Material	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Connector Type	Mounting Type	Contact Type	Number of Positions [custom]	Fastening Type

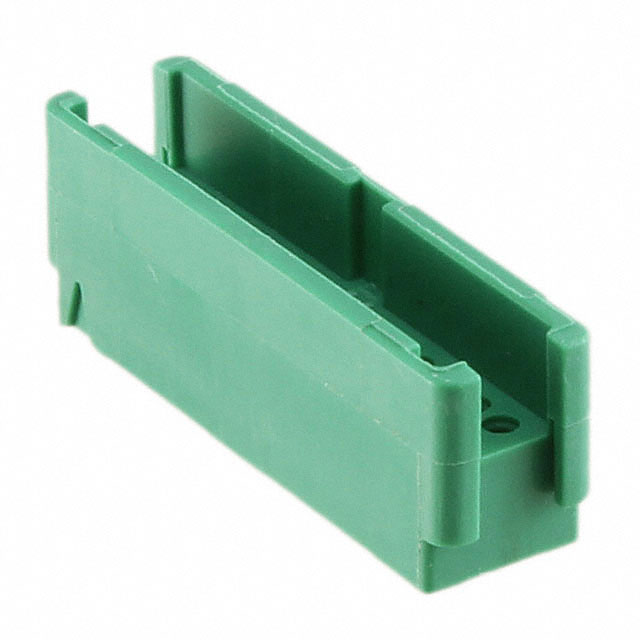

Harwin Inc. G125-3042696L0	Contacts Not Included	Crimp	26	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin

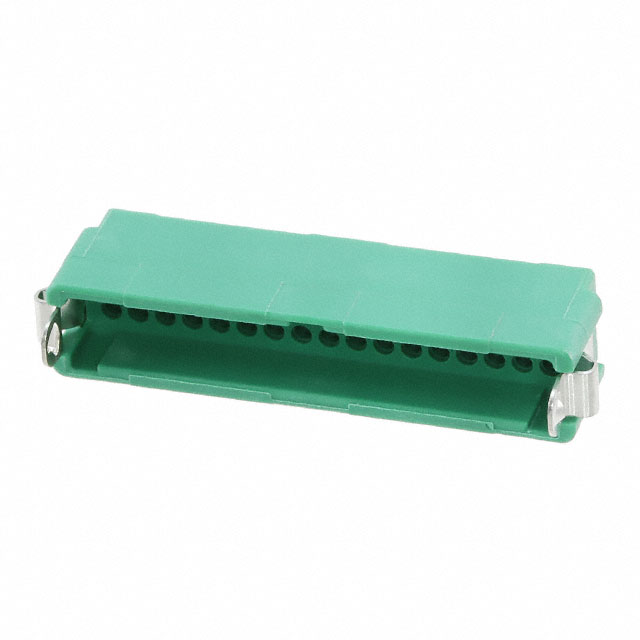

Harwin Inc. G125-3043496L4	Contacts Not Included	Crimp		Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin	34	Latch Lock

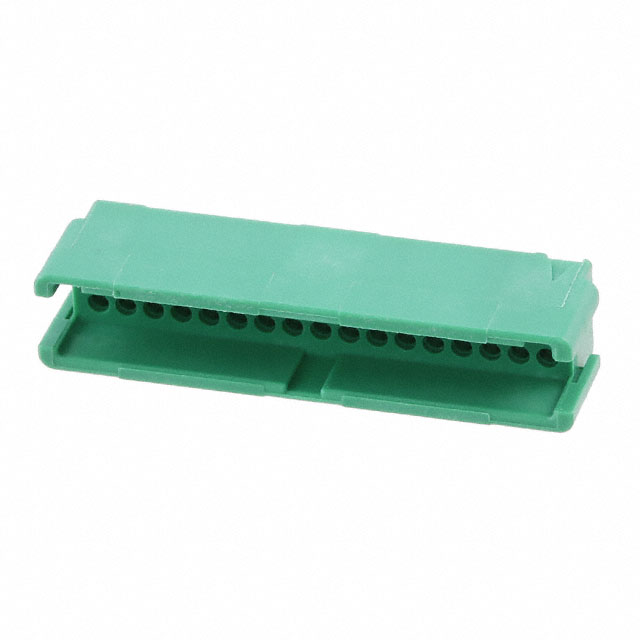

Harwin Inc. G125-3043496L0	Contacts Not Included	Crimp		Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin	34

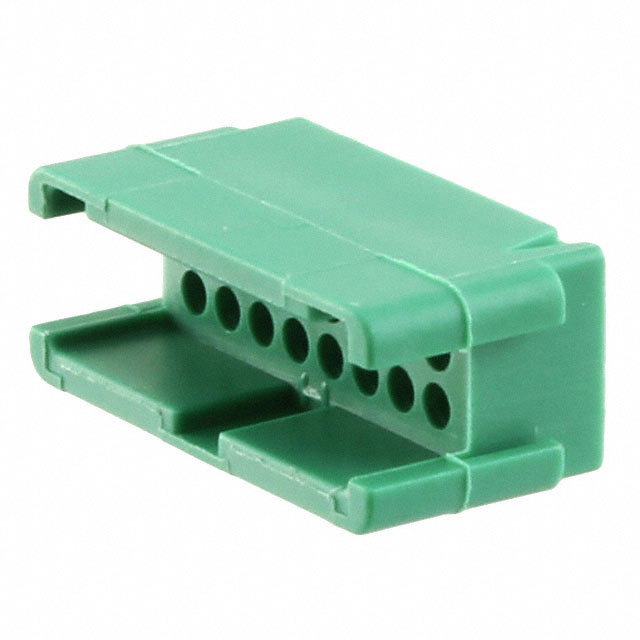

Harwin Inc. G125-3041696L0	Contacts Not Included	Crimp	16	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin

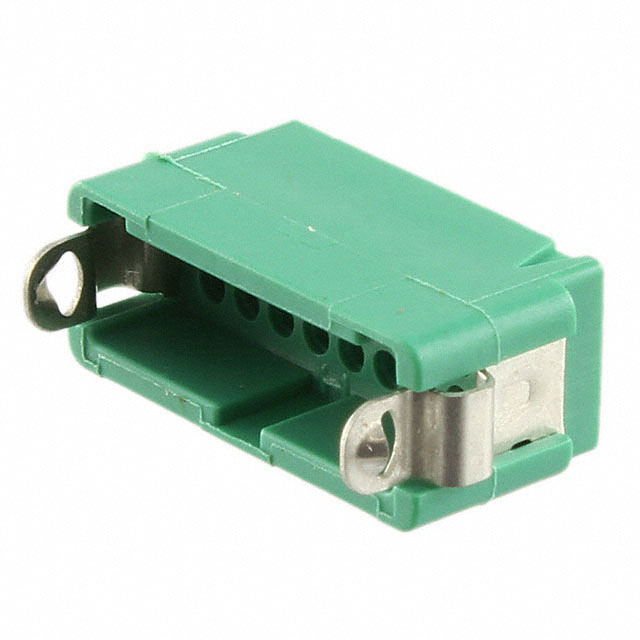

Harwin Inc. G125-3041696L4	Contacts Not Included	Crimp	16	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin		Latch Lock

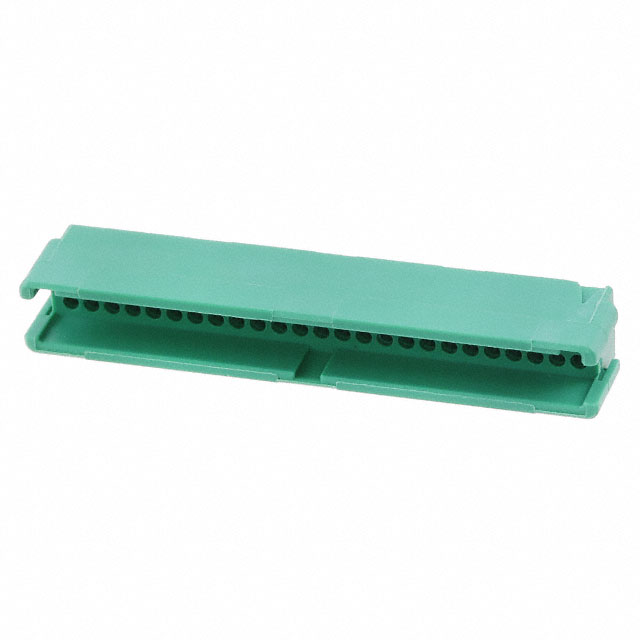

Harwin Inc. G125-3045096L0	Contacts Not Included	Crimp	50	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin

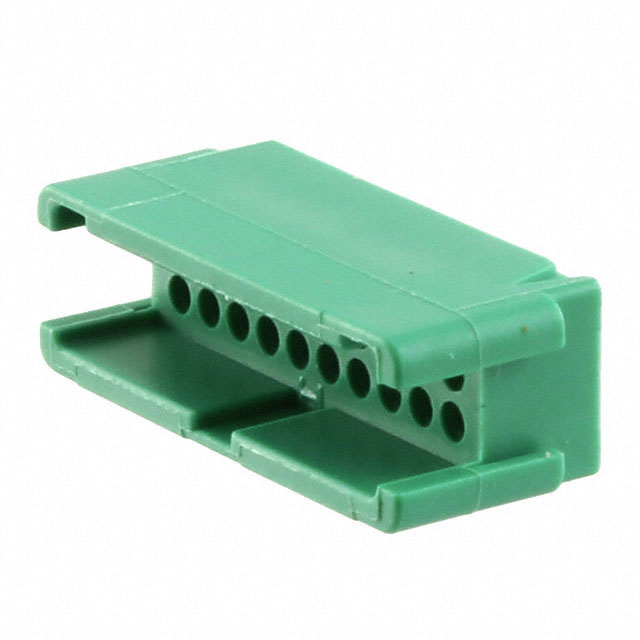

Harwin Inc. G125-3042096L0	Contacts Not Included	Crimp	20	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin

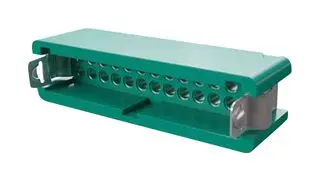

Harwin Inc. G125-3042696L4	Contacts Not Included	Crimp	26	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin		Latch Lock

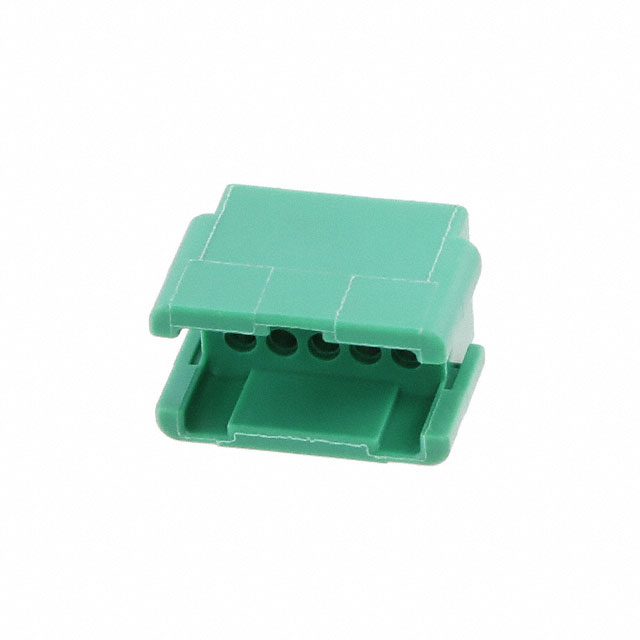

Harwin Inc. G125-3041096L0	Contacts Not Included	Crimp	10	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin

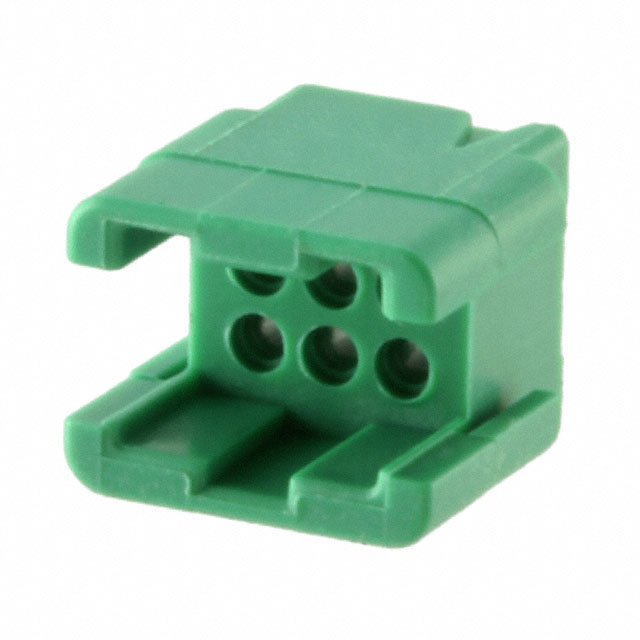

Harwin Inc. G125-3040696L0	Contacts Not Included	Crimp	6	Potting Wall	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	150 °C	-65 ░C	2	Header	Free Hanging (In-Line)	Male Pin
