TCA6507 Series

7-bit 1.65- to 5.5-V I2C/SMBus LED driver with intensity control, shutdown & config registers

Catalog

7-bit 1.65- to 5.5-V I2C/SMBus LED driver with intensity control, shutdown & config registers

Part	Voltage - Supply (Min) [Min]	Voltage - Supply (Max) [Max]	Voltage - Output	Package / Case [custom]	Package / Case [custom]	Package / Case	Frequency	Dimming	Type	Mounting Type	Current - Output / Channel [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Outputs	Utilized IC / Part	Outputs and Type	Outputs and Type	Features	Supplied Contents
Texas Instruments TCA6507PWRG4	1.65 V	3.6 V	5.5 V	0.173 "	4.4 mm	14-TSSOP	100 kHz 400 kHz	I2C SMBus	Linear	Surface Mount	40 mA	-40 °C	125 °C	14-TSSOP	7
Texas Instruments TCA6507PW	1.65 V	3.6 V	5.5 V	0.173 "	4.4 mm	14-TSSOP	100 kHz 400 kHz	I2C SMBus	Linear	Surface Mount	40 mA	-40 °C	125 °C	14-TSSOP	7
Texas Instruments TCA6507PWR	1.65 V	3.6 V	5.5 V	0.173 "	4.4 mm	14-TSSOP	100 kHz 400 kHz	I2C SMBus	Linear	Surface Mount	40 mA	-40 °C	125 °C	14-TSSOP	7
Texas Instruments TCA6507EVM											40 mA					TCA6507	Non-Isolated	7	Dimmable	Board(s)

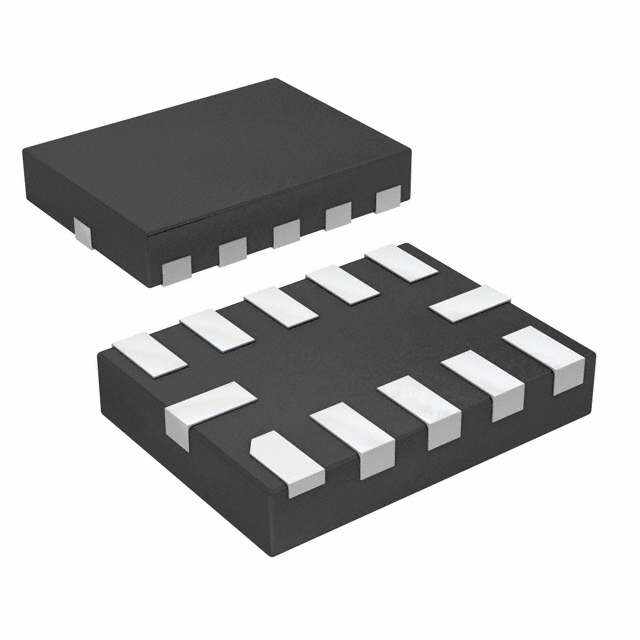

Texas Instruments TCA6507RUER	1.65 V	3.6 V	5.5 V			12-XFQFN	100 kHz 400 kHz	I2C SMBus	Linear	Surface Mount	40 mA	-40 °C	125 °C	12-X2QFN (2x1.4)	7

Catalog

7-bit 1.65- to 5.5-V I2C/SMBus LED driver with intensity control, shutdown & config registers

Key Features

• Seven LED Driver Outputs: ON, OFF, Blinking, Fading at Programmable RatesOpen-Drain Outputs Directly Drive LEDs to 40-mA MaximumTwo Independent Banks of LED DriversWidely Programmable Blink Rates, Fade-ON and Fade-OFF Rates and Maximum IntensityOutputs Not Used as LED Drivers Can Be Used as Regular General-Purpose Open-Drain Outputs16 Steps of Maximum Intensity Control from Fully-OFF to Fully-ON StatesSmooth Perceived Transitions for Fade-ON and Fade-OFFOperating Power-Supply Voltage Range of 1.65 V to 3.6 V5.5-V Tolerant Open-Drain OutputsLow Standby Current With Shutdown Capability for Additional Power SavingsProgrammed Through I2C Bus Interface Logic Compatible With SMBusNo Glitch on Power UpESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class IISeven LED Driver Outputs: ON, OFF, Blinking, Fading at Programmable RatesOpen-Drain Outputs Directly Drive LEDs to 40-mA MaximumTwo Independent Banks of LED DriversWidely Programmable Blink Rates, Fade-ON and Fade-OFF Rates and Maximum IntensityOutputs Not Used as LED Drivers Can Be Used as Regular General-Purpose Open-Drain Outputs16 Steps of Maximum Intensity Control from Fully-OFF to Fully-ON StatesSmooth Perceived Transitions for Fade-ON and Fade-OFFOperating Power-Supply Voltage Range of 1.65 V to 3.6 V5.5-V Tolerant Open-Drain OutputsLow Standby Current With Shutdown Capability for Additional Power SavingsProgrammed Through I2C Bus Interface Logic Compatible With SMBusNo Glitch on Power UpESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Description

This 7-bit LED dimmer for the two-line bidirectional bus (I2C) is designed to control (or dim) LEDs through the I2C interface. Without this device, the microcontroller must be actively involved in turning on and off the LEDs (per the required dimming rate), which uses valuable processor time. The TCA6507 alleviates this issue by limiting the number of operations required by the processor in blinking LEDs and helps to create a more efficient system. The TCA6507 handles all pulse width modulation (PWM) logic, allowing the processor to use its cycles for more important tasks. This 7-bit LED dimmer for the two-line bidirectional bus (I2C) is designed to control (or dim) LEDs through the I2C interface. Without this device, the microcontroller must be actively involved in turning on and off the LEDs (per the required dimming rate), which uses valuable processor time. The TCA6507 alleviates this issue by limiting the number of operations required by the processor in blinking LEDs and helps to create a more efficient system. The TCA6507 handles all pulse width modulation (PWM) logic, allowing the processor to use its cycles for more important tasks.
