RZC1 Series

Catalog

CYLINDER SENSOR, C-TYPE, 5 TO 30V ROHS COMPLIANT: YES

Part	Actuator Type	Technology	Package / Case	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	For Measuring	Mounting Type	Type	Output Type
SICK, Inc. RZC1-04ZRS-KRD	C-Slot	Reed Switch	Module	Cable with Connector	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount

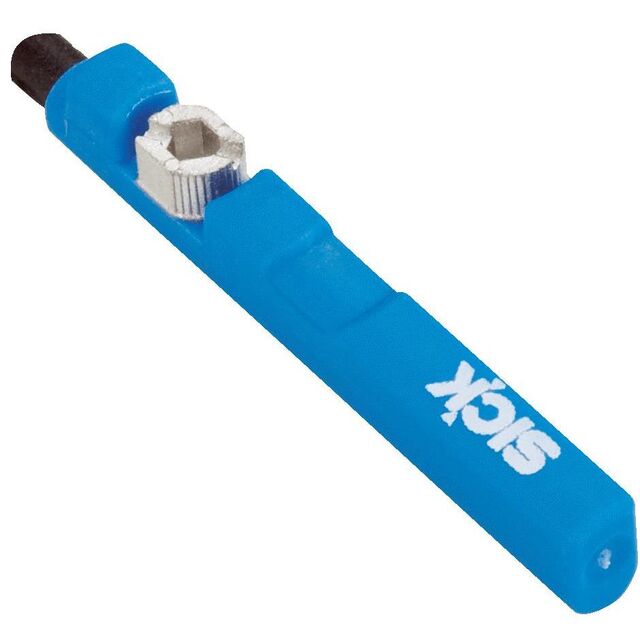

SICK, Inc. 1059745	C-Slot	Reed Switch	Module	Cable with Connector	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
SICK, Inc. 1059750	C-Slot	Reed Switch	Module	Cable	120 V	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
SICK, Inc. RZC1-04ZRS-KU0	C-Slot	Reed Switch	Module	Cable	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
SICK, Inc. 1059748	C-Slot	Reed Switch	Module	Cable with Connector	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
SICK, Inc. 1059751	C-Slot	Reed Switch	Module	Cable with Connector	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
SICK, Inc. 1059747			Cylinder	Cable with Connector	30 VDC	5 V	-30 ░C	80 °C			Reed Switch	SPST-NO
SICK, Inc. 1059749	C-Slot	Reed Switch	Module	Cable	30 VDC	5 V	-30 °C	80 °C	Linear Position	Chassis Mount
