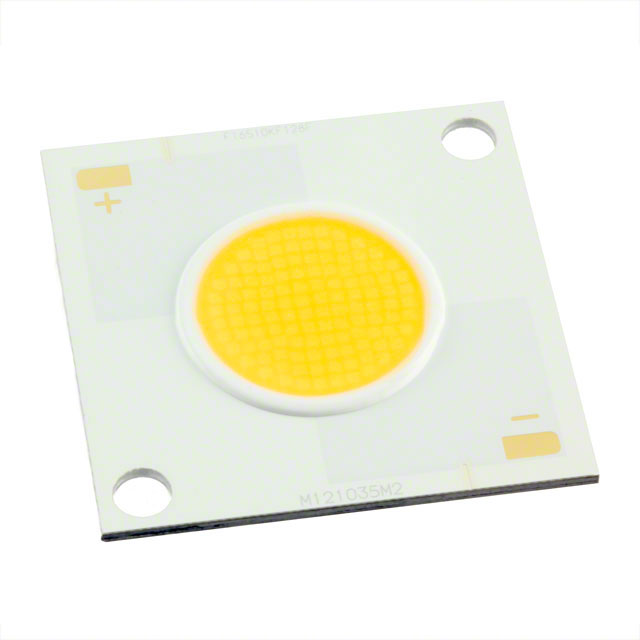

CLU731 Series

Catalog

LED COB CLU731 WM WHT SQ 3000K

Part	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Current - Max [Max]	Type	Configuration	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	Current - Test	Temperature - Test	Lens Type	Color	Lumens/Watt @ Current - Test
Citizen Finedevice Co Ltd CLU731-1210C4-303M2K1	28 mm	28 mm	13 mm	80	2.3 A	Chip On Board (COB)	Square	37.6 V	7699 lm	3000 K	1.75 A	85 °C	Flat	Warm White	117 lm/W
Citizen Finedevice Co Ltd CLU731-1210C4-353M2K1	28 mm	28 mm	13 mm	80	2.3 A	Chip On Board (COB)	Square	37.6 V	7879 lm	3500 K	1.75 A	85 °C	Flat	Warm White	120 lm/W
Citizen Finedevice Co Ltd CLU731-1210C4-273M2K1	28 mm	28 mm	13 mm	80	2.3 A	Chip On Board (COB)	Square	37.6 V	7298 lm	2700 K	1.75 A	85 °C	Flat	Warm White	111 lm/W
Citizen Finedevice Co Ltd CLU731-1210C4-403H5K2	28 mm	28 mm	13 mm	90	2.3 A	Chip On Board (COB)	Square	37.6 V	6634 lm	4000 K	1.75 A	85 °C	Flat	Neutral White	101 lm/W
Citizen Finedevice Co Ltd CLU731-1210C4-403M2K1	28 mm	28 mm	13 mm	80	2.3 A	Chip On Board (COB)	Square	37.6 V	8036 lm	4000 K	1.75 A	85 °C	Flat	Neutral White	122 lm/W
