FS380R12 Series
Manufacturer: INFINEON
Beta
⌘K

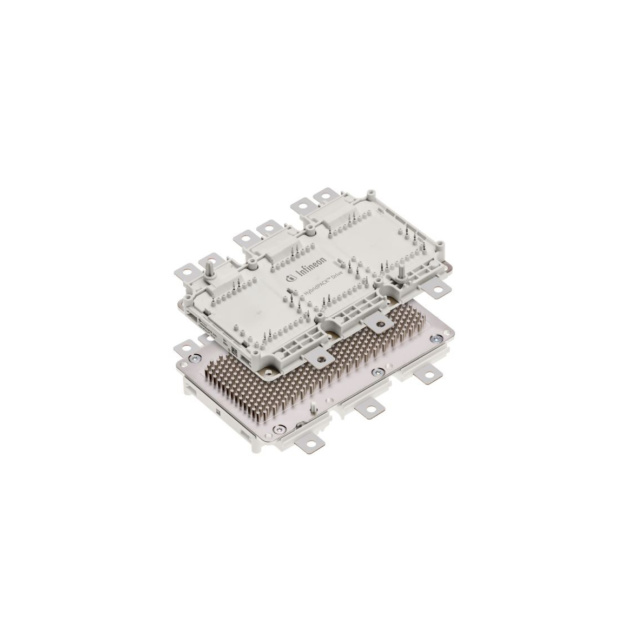

IGBT MODULES HYBRID PACK DRIVE G1 SI
| Part | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | IGBT Type | Mounting Type | Current - Collector (Ic) (Max) [Max] | Configuration | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) [Max] | Package / Case | NTC Thermistor | Supplier Device Package | Input Capacitance (Cies) @ Vce | Operating Temperature [Min] | Operating Temperature [Max] | Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 870 W | 1200 V | Trench Field Stop | Chassis Mount | 380 A | Three Phase Inverter | 1.95 V | 1 mA | Module | AG-HYBRIDD-2 | 19 nF | -40 °C | 150 °C | Standard |
