929870 Series

Catalog

CONN RCPT 9POS 0.1 GOLD PCB

Part	Insulation Material	Contact Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Height	Insulation Color	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Voltage Rating	Number of Rows	Material Flammability Rating	Termination	Contact Type	Number of Positions	Number of Positions Loaded
3M Electronic Specialty 929870-01-09-30	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.76 Ám	30 Áin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	9	All
3M Electronic Specialty 929870-01-10-30	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.76 Ám	30 Áin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	10	All
3M Electronic Specialty 929870-01-32-RA	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin	0.125 in	3.18 mm	Receptacle	0.25 µm	10 µin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked		All
3M Electronic Specialty 929870-01-11-10	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.25 µm	10 µin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	11	All
3M Electronic Specialty 929870-01-14-10	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.25 µm	10 µin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	14	All
3M Electronic Specialty 929870-01-10-10	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.25 µm	10 µin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	10	All
3M Electronic Specialty 929870-01-12-30	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.76 Ám	30 Áin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	12	All

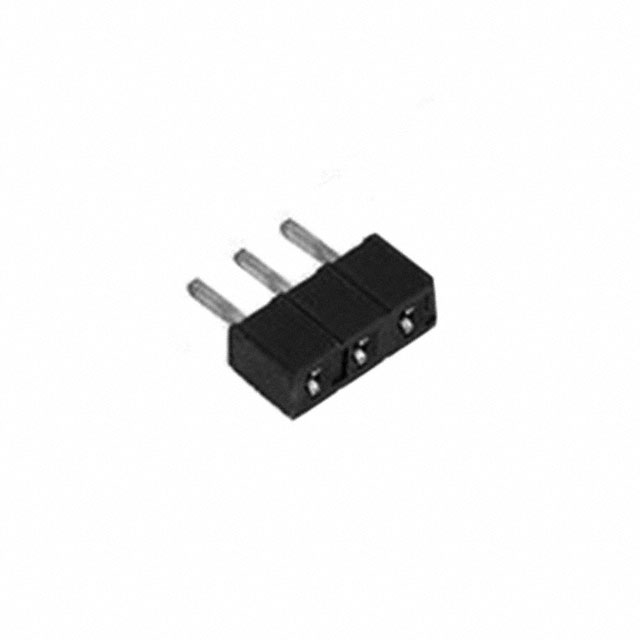

3M Electronic Specialty 929870-01-03-10	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin-Lead	0.125 in	3.18 mm	Receptacle	0.25 µm	10 µin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked		All
3M Electronic Specialty 929870-01-10-RB	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin	0.125 in	3.18 mm	Receptacle	0.76 Ám	30 Áin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	10	All
3M Electronic Specialty 929870-01-02-RB	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Square	-40 C	105 ░C	Push-Pull	0.15 in 3.81 mm	Black	Tin	0.125 in	3.18 mm	Receptacle	0.76 Ám	30 Áin	Gold	0.1 "	2.54 mm	Through Hole	1000 VDC	1	UL94 V-0	Solder	Forked	2	All
