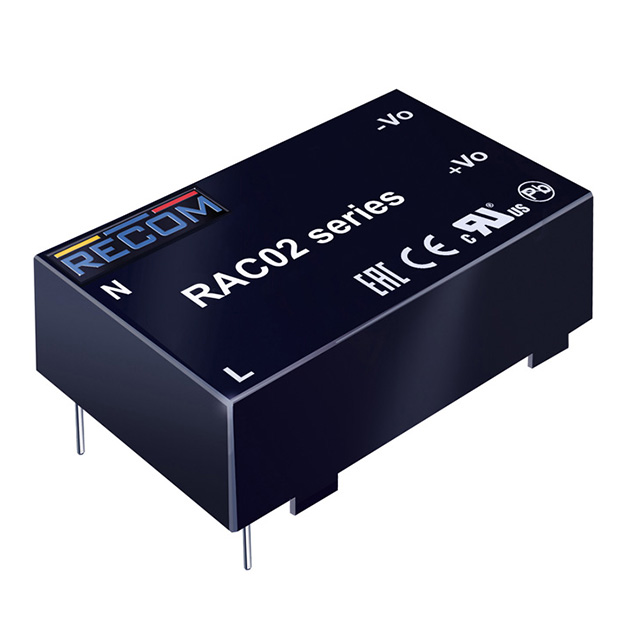

RAC02-09 Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC CONVERTER 9V 2W
| Part | Load Regulation | Line Regulation | Weight [diameter] | Weight [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Features | Number of Outputs | Package / Case | Approval Agency | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 6 % | 2 % | 0.055 lb | 24.95 g | 0.71 in | 18 mm | 0.87 in | 22.2 mm | 1.33 in | 33.7 mm | Enclosed | ITE (Commercial) | 80 VAC | 264 VAC | 2 W | SCP | 1 | 4-DIP Module | CE EN UL | 9 V | 85 °C | -25 °C | 222 mA | 74 % | Through Hole |
