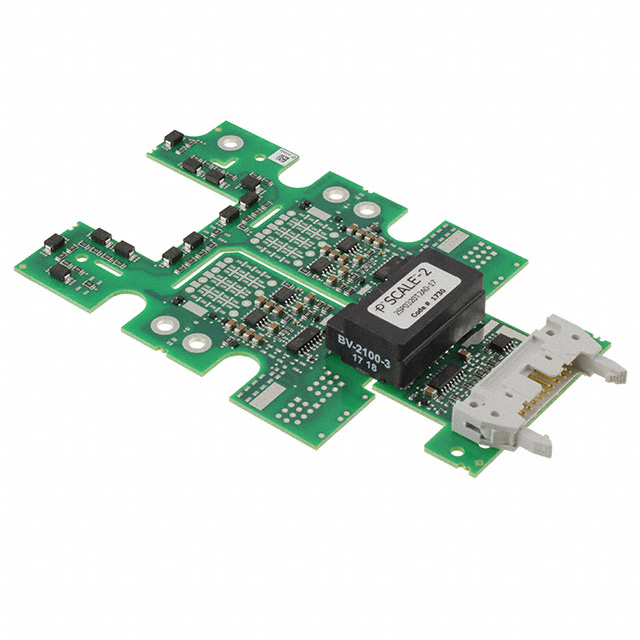

2SP0320 Series
Manufacturer: POWER INTEGRATIONS
Beta
⌘K
IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: NO
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Channel Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Driven Configuration | Rise / Fall Time (Typ) | Supplier Device Package | Number of Drivers | Gate Type | High Side Voltage - Max (Bootstrap) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | 15.5 V | 14.5 V | 20 A | 20 A | Independent | 85 C | -40 ¯C | Module | Half-Bridge | 7 ns 25 ns | Module | 2 | IGBT | 1.2 kV | Surface Mount |
