P822604 Series

Catalog

BROADBAND 5G/LTE/LPWA PCB ANTENN

Part	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Gain	Power - Max [Max]	Applications	Height (Max) [z]	Height (Max) [z]	Frequency (Center/Band)	Mounting Type	Frequency Group	Number of Bands	VSWR	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Type	Frequency [Min]	Frequency [Max]	Contents

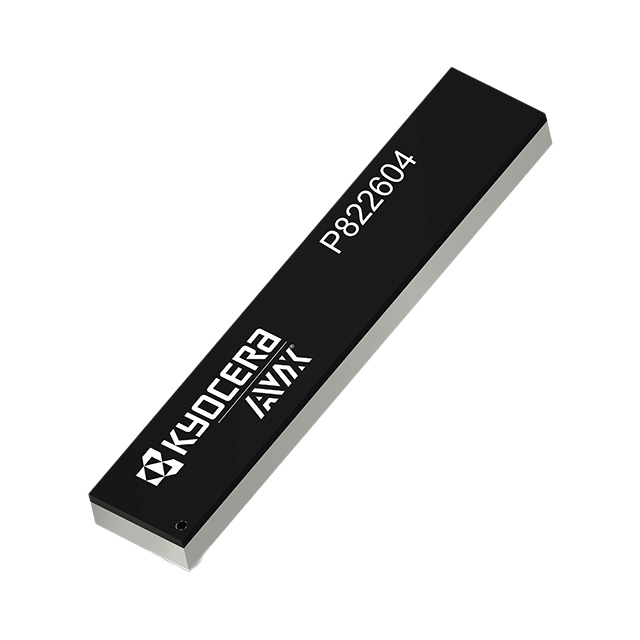

KYOCERA AVX P822604	Cellular	1.71 GHz 2.5 GHz 698 MHz	2.17 GHz 2.7 GHz 960 MHz	Chip	0.4 dBi 0.7 dBi 1 dBi	2 W	LoRa LTE Sigfox	3.2 mm	0.126 in	1.94 GHz 2.6 GHz 829 MHz	Surface Mount	Wide Band	3	2.5 3.3 3.4

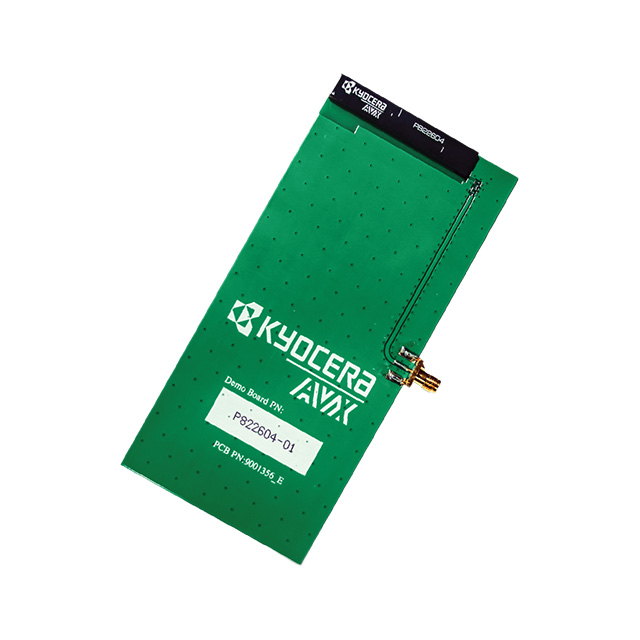

KYOCERA AVX P822604-01															Board(s)	P822604	P822604	Antenna	1.71 GHz 2.5 GHz 698 MHz	2.17 GHz 960 MHz 2700 MHz	Board(s)
