1057279 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

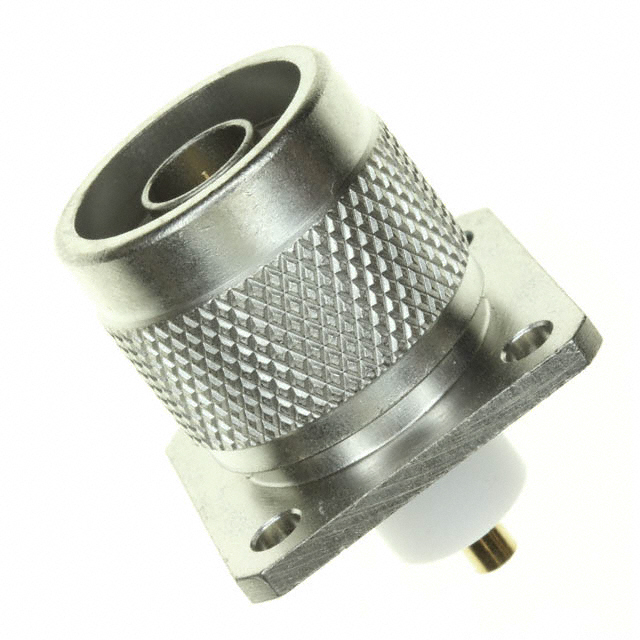

CONN N PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Voltage Rating | Body Material | Body Finish | Shield Termination | Housing Color | Contact Termination | Features | Number of Ports | Connector Style | Mounting Feature | Connector Type | Frequency - Max [Max] | Impedance | Fastening Type | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 1000 VDC | Brass | Nickel | Solder | Silver | Solder | Extended Insulation | 1 | N Type | Flange | Plug Male Pin | 11 GHz | 50 Ohms | Threaded | Panel Mount | Brass |
