580-M15 Series

Catalog

D SUB CONNECTOR, MICRO D, RECEPTACLE, 580 M SERIES, 15 CONTACTS, SOLDER

Part	Contact Material	Color	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type	Number of Rows [custom]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Termination	Connector Style	Shell Material, Finish	Current Rating (Amps)	Features	Mounting Type	Contact Finish	Connector Type	Number of Positions	Wire Gauge
NorComp Inc. 580-M15-213L001	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.38 µm	15 µin	Housing/Shell (Unthreaded)	0.043 in	0.05 in	Solder	D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount Through Hole	Gold	Receptacle Female Sockets	15
NorComp Inc. 580-M15-103L001	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.38 µm	15 µin	Housing/Shell (Unthreaded)	0.043 in	0.05 in		D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount	Gold	Plug Male Pins	15	26 AWG

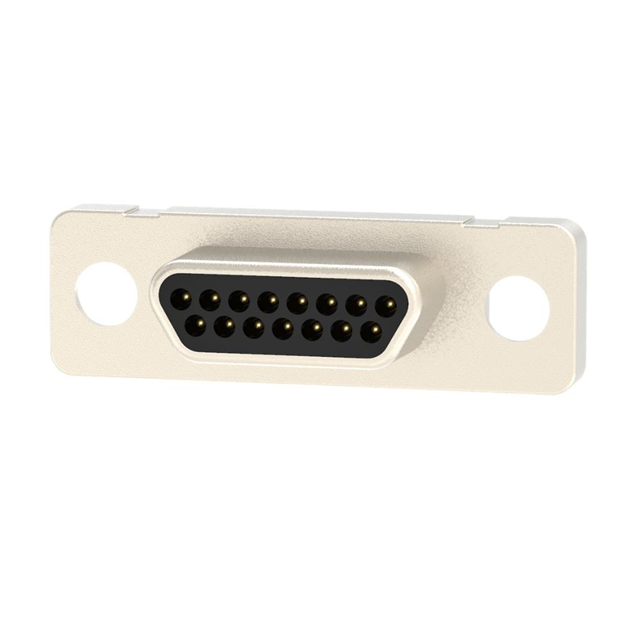

NorComp Inc. 580-M15-113L001	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.38 µm	15 µin	Housing/Shell (Unthreaded)	0.043 in	0.05 in	Solder	D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount Through Hole	Gold	Plug Male Pins	15
NorComp Inc. 580-M15-203L001	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.38 µm	15 µin	Housing/Shell (Unthreaded)	0.043 in	0.05 in		D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount	Gold	Receptacle Female Sockets	15	26 AWG
NorComp Inc. 580-M15-213L002	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	0.043 in	0.05 in	Solder	D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount Through Hole	Gold	Receptacle Female Sockets	15
NorComp Inc. 580-M15-113L002	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	0.043 in	0.05 in	Solder	D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount Through Hole	Gold	Plug Male Pins	15
NorComp Inc. 580-M15-203L002	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	0.043 in	0.05 in		D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount	Gold	Receptacle Female Sockets	15	26 AWG
NorComp Inc. 580-M15-103L002	Brass	Black	Liquid Crystal Polymer (LCP)	125 °C	-40 C	60 VDC	Signal	2	UL94 V-0	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	0.043 in	0.05 in		D-Type Micro-D	Nickel Plated Zinc Alloy	2 A	Shielded	Panel Mount	Gold	Plug Male Pins	15	26 AWG
