RxxPxx/R Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 6.4KV UNREG 12VIN 15VOUT

...

Part	Type	Efficiency	Voltage - Isolation	Package / Case	Features	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Min]

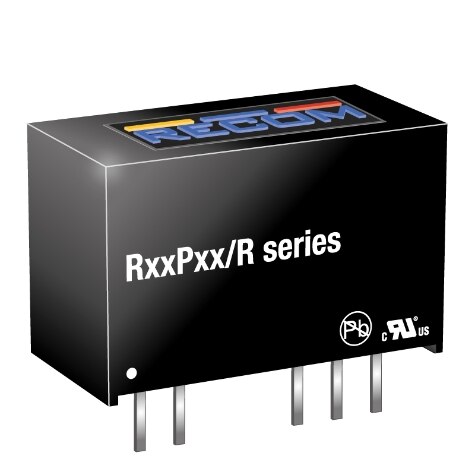

Recom Power R12P15S/P/R6.4	Isolated Module	83 %	6.4 kV	7-SIP Module 4 Leads	SCP	15 V	ITE (Commercial) Medical	66 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	10.8 V	1	13.2 V	85 °C	-40 C
Recom Power R09P05S/P/X2/R6.4	Isolated Module	80 %	6.4 kV	7-SIP Module 4 Leads	SCP	5 V	ITE (Commercial) Medical	200 mA	12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "	Through Hole	8.1 V	1	9.9 V	85 °C	-40 C
Recom Power R24P05S/P/X2/R8	Isolated Module	80 %	8 kV	7-SIP Module 4 Leads	SCP	5 V	ITE (Commercial) Medical	200 mA	12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "	Through Hole	21.6 V	1	26.4 V	85 °C	-40 C
Recom Power R12P12D/P/R6.4	Isolated Module		6.4 kV	7-SIP Module 5 Leads	SCP	12 V	ITE (Commercial) Medical	41 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	10.8 V	2	13.2 V	85 °C	-40 C	-12 V
Recom Power R24P09D/P/R8	Isolated Module		8 kV	7-SIP Module 5 Leads	SCP	9 V	ITE (Commercial) Medical		12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	21.6 V	2	26.4 V	85 °C	-40 C	-9 V	55 mA	55 mA
Recom Power R05P12D/R6.4	Isolated Module		6.4 kV	7-SIP Module 5 Leads		12 V	ITE (Commercial) Medical	41 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	4.5 V	2	5.5 V	85 °C	-40 C	-12 V
Recom Power R09P15S/R6.4	Isolated Module	83 %	6.4 kV	7-SIP Module 4 Leads		15 V	ITE (Commercial) Medical	66 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	8.1 V	1	9.9 V	85 °C	-40 C
Recom Power R24P15D/R8	Isolated Module	83 %	8 kV	7-SIP Module 5 Leads		15 V	ITE (Commercial) Medical	33 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	21.6 V	2	26.4 V	85 °C	-40 C	-15 V			33 mA
Recom Power R24P15S/X2/R6.4	Isolated Module	83 %	6.4 kV	7-SIP Module 4 Leads		15 V	ITE (Commercial) Medical	66 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	21.6 V	1	26.4 V	85 °C	-40 C
Recom Power R24P12S/R8	Isolated Module		8 kV	7-SIP Module 4 Leads		12 V	ITE (Commercial) Medical	84 mA	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	Through Hole	21.6 V	1	26.4 V	85 °C	-40 C
