K32B0C-P Series
Manufacturer: ODU
Beta
⌘K

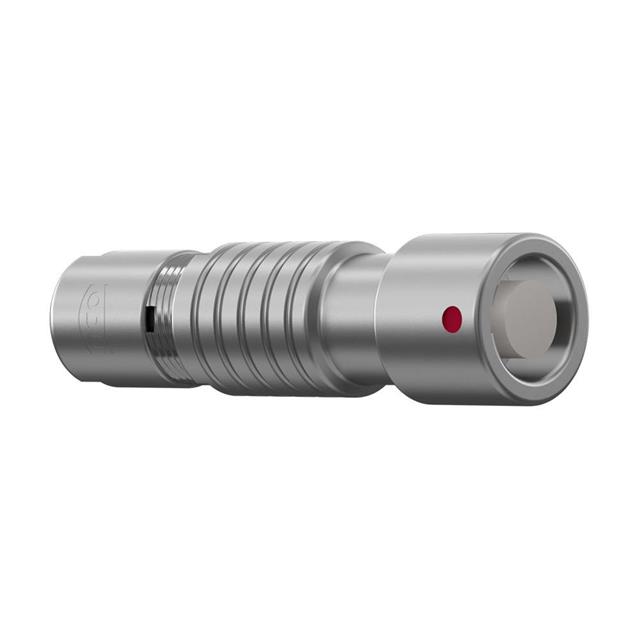

ODU MINI-SNAP RECEPT.,INLINE,SZ.
| Part | Ingress Protection | Orientation | Features | Contact Material | Insert Material | Contact Finish - Mating | Current Rating (Amps) | Termination | Shell Size - Insert [custom] | Applications | Fastening Type | Connector Type | Voltage Rating | Shell Material | Backshell Material, Plating | Primary Material | Number of Positions | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Type | Color | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 7.5 A | Crimp | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 366 V | Brass | Brass Chrome over Nickel | Metal | 14 | 0.276 " | 0.295 in | 7.5 mm | 7 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded | |
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 6 A | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 400 V | Brass | Brass Chrome over Nickel | Metal | 14 | 0.236 in | 0.256 in | 6.5 mm | 6 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded | ||
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 7.5 A | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 366 V | Brass | Brass Chrome over Nickel | Metal | 14 | 0.256 in | 0.276 " | 7 mm | 6.5 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded | ||
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 24 A | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 600 V | Brass | Brass Chrome over Nickel | Metal | 2 | 0.177 in | 0.197 in | 5 mm | 4.5 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded | ||
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 7.5 A | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 500 V | Brass | Brass Chrome over Nickel | Metal | 10 | 0.335 in 8.5 mm | 0.354 in 9 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded | ||||
IP68 - Dust Tight Waterproof | 0 | Backshell | Brass | Polyetheretherketone (PEEK) | Gold | 6 A | Crimp | 2 | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Receptacle Female Sockets | 400 V | Brass | Brass Chrome over Nickel | Metal | 14 | 0.236 in | 0.256 in | 6.5 mm | 6 mm | 120 °C | -40 C | Chrome over Nickel | Free Hanging (In-Line) | Silver | Unshielded |
