Q3-0.005 Series

Manufacturer: Bergquist

Catalog

THERM PAD 39.7X26.67MM W/ADH

Part	Shelf Life	Thermal Conductivity	Shape	Backing, Carrier [custom]	Backing, Carrier [custom]	Thickness	Thickness	Thermal Resistivity	Outline [x]	Outline [y]	Usage	Adhesive	Color	Material

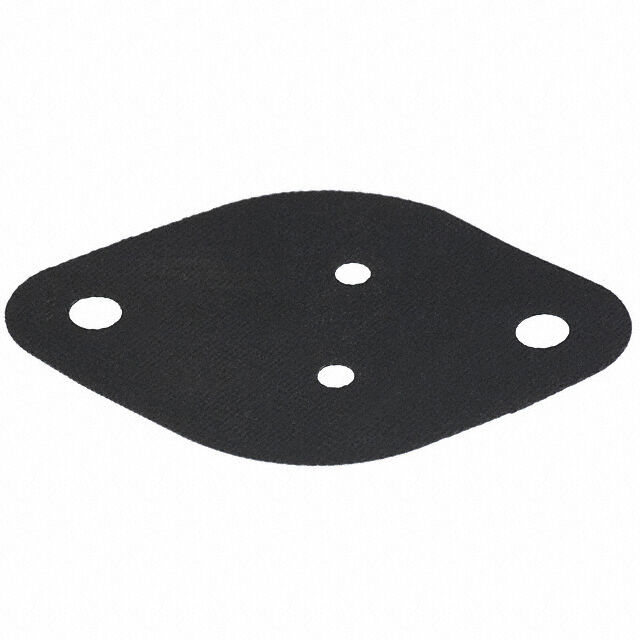

Bergquist Q3-0.005-AC-18	6 Months	2 W/m-K	Rhombus	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	39.7 mm	26.67 mm	TO-3	Adhesive - One Side	Black	Elastomer

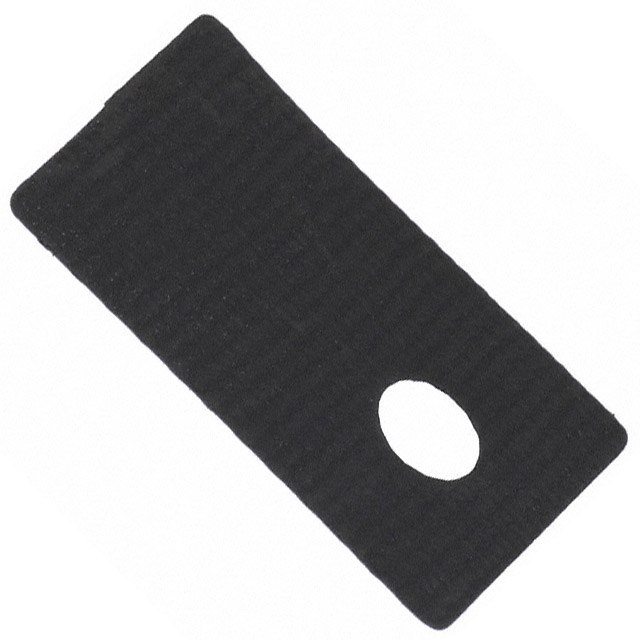

Bergquist Q3-0.005-00-58		2 W/m-K	Rectangular	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	19.05 mm	12.7 mm	TO-220		Black	Elastomer

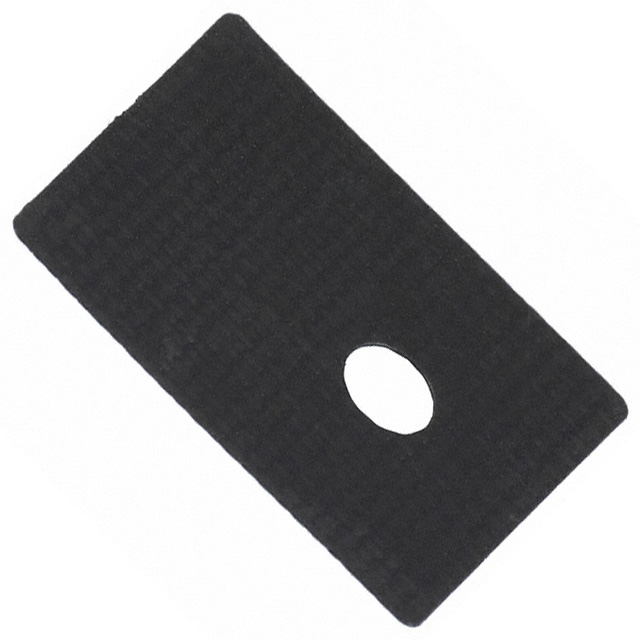

Bergquist Q3-0.005-00-51		2 W/m-K	Rectangular	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	17.45 mm	14.27 mm	TO-220		Black	Elastomer
Bergquist Q3-0.005-AC-46
Bergquist Q3-0.005-00-30		2 W/m-K	Rhombus	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	31.75 mm	17.78 mm	TO-66		Black	Elastomer
Bergquist Q3-0.005-00-22		2 W/m-K	Round	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	15.87 mm	5.08 mm	DO-4		Black	Elastomer
Bergquist Q3-0.005-00-90		2 W/m-K	Rectangular	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	21.84 mm	18.79 mm	TO-218 TO-220 TO-247		Black	Elastomer

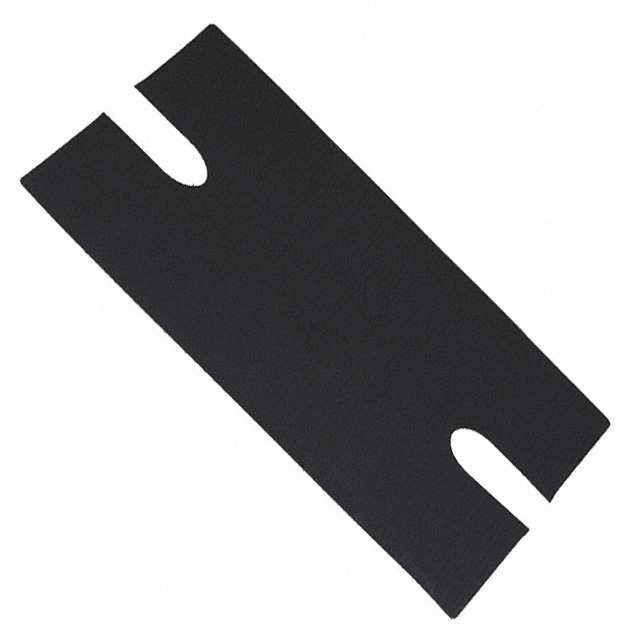

Bergquist Q3-0.005-00-67		2 W/m-K	Rectangular	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	38.1 mm	22.86 mm	Power Module		Black	Elastomer
Bergquist Q3-0.005-00-105		2 W/m-K	Rectangular	Fiberglass	Fiberglass	0.005 in	5 mils	0.35 °C/W	36.83 mm	21.29 mm	SIP		Black	Elastomer
