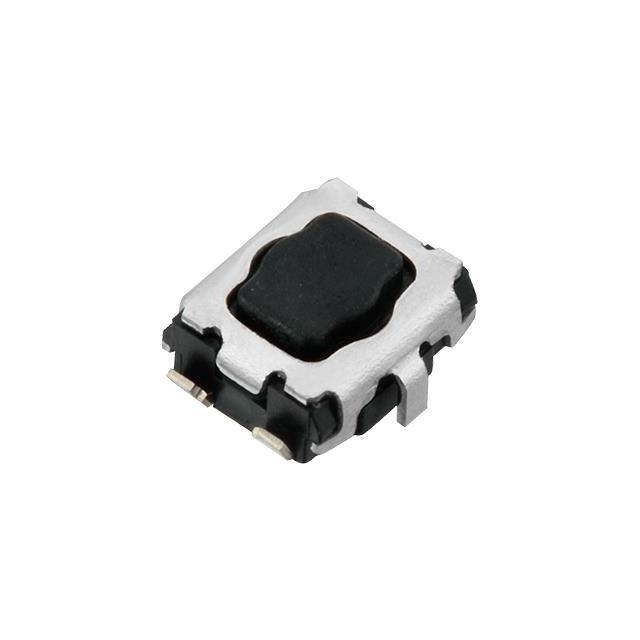

EVP-3A Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
TACTILE SWITCH, SPST-NO, EVP-3A SERIES, TOP ACTUATED, SURFACE MOUNT, RECTANGULAR BUTTON, 5 N
| Part | Mechanical Life | Switch Travel | Mounting Type | Circuit | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Operating Force | Actuator Height off PCB, Vertical | Actuator Orientation | Contact Rating @ Voltage | Actuator Type | Illumination | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 200000 Cycles | 0.15 mm | Surface Mount | SPST-NO | J Lead | 85 °C | -40 C | Off-Mom | 510 gf | 1.7 mm | Top Actuated | 0.02 A 15 VDC | Rectangular Button | Non-Illuminated | 3.5 mm | 2.9 mm |
