EFB1712 Series
Manufacturer: Delta Electronics
Beta
⌘K

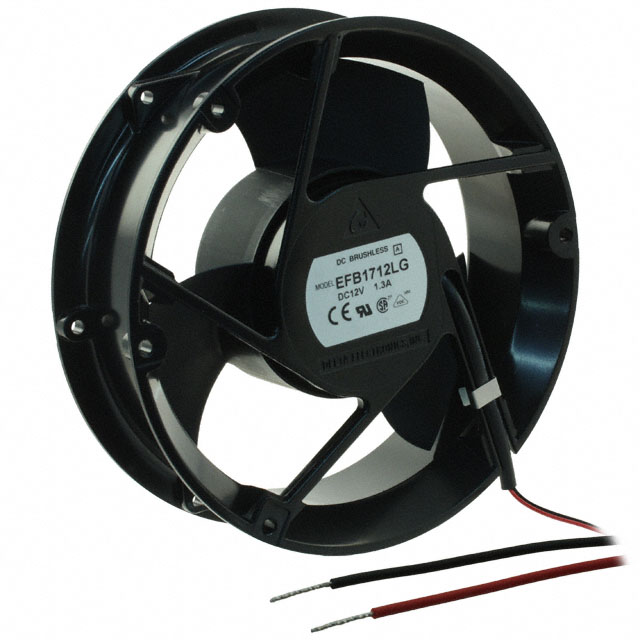

FAN AXIAL 172X50.8MM 12VDC WIRE
| Part | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Material - Blade | Air Flow | Air Flow | Bearing Type | RPM | Approval Agency | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Rated | Static Pressure | Static Pressure | Fan Type | Termination | Weight | Weight | Size / Dimension [diameter] | Size / Dimension | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Aluminum | 8 V | 14 V | 80000 Hrs | 0.79 A | Plastic | 210.1 CFM | 5.88 m³/min | Ball | 2800 RPM | CE CSA UL VDE | 50.8 mm | 70 °C | -10 °C | 9.48 W | 12 VDC | 116.8 Pa | 0.469 in H2O | Tubeaxial | 2 Wire Leads | 861.8 g | 1.9 lbs | 172 mm | Round | 48 dB |
