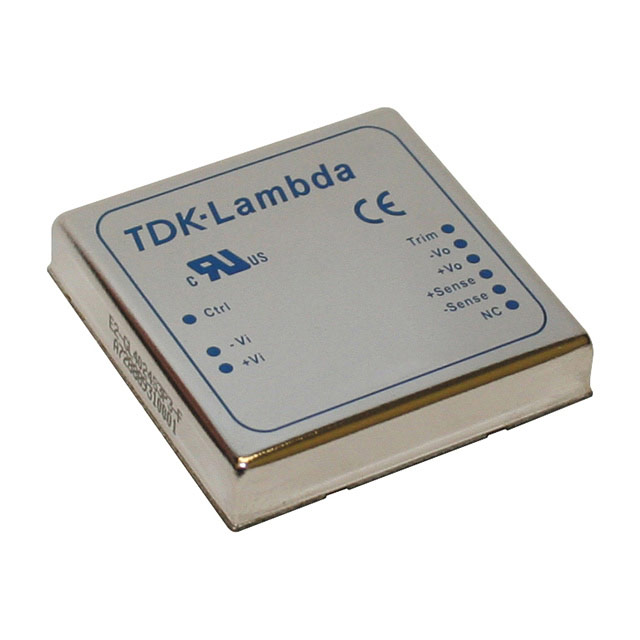

PXF40 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 40 W, 2 OUTPUT, 15 V

Part	Package / Case	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Current - Output (Max)	Power (Watts)	Features	Applications	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Isolation	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output 3	Current - Output (Max) [Max]
TDK Corporation PXF40-48D15	9-DIP Module	15 V	2	36 V	1.4 A	40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV	-15 V	50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	100 °C	87 %
TDK Corporation PXF40-48D12	9-DIP Module	12 V	2	36 V	1.8 A	40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV	-12 V	50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	100 °C	87 %
TDK Corporation PXF40-24T0515	9-DIP Module	5 V	3	18 V	6 A 300 mA	40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	36 V	Through Hole	1.6 kV	15 V	50.8 mm	0.4 "	2 in	10.2 mm	50.8 mm	2 in	Isolated Module			87 %	-15 V
TDK Corporation PXF40-48S15	9-DIP Module	15 V	1	36 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV		50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	105 ░C	87 %		2.666 A
TDK Corporation PXF40-24T3312	9-DIP Module	3.3 V	3	18 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	36 V	Through Hole	1.6 kV	12 V	50.8 mm	0.4 "	2 in	10.2 mm	50.8 mm	2 in	Isolated Module			85 %	-12 V
TDK Corporation PXF40-48S05	9-DIP Module	5 V	1	36 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV		50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	105 ░C	88 %		8 A
TDK Corporation PXF40-24WS05	8-DIP Module	5 V	1	9 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	36 V	Through Hole	1.6 kV		50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	105 ░C	87 %		8 A
TDK Corporation PXF40-24WS15	8-DIP Module	15 V	1	9 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	36 V	Through Hole	1.6 kV		50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	105 ░C	87 %		2.666 A
TDK Corporation PXF40-48T3312	9-DIP Module	3.3 V	3	36 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV	12 V	50.8 mm	0.4 "	2 in	10.2 mm	50.8 mm	2 in	Isolated Module			83 %	-12 V
TDK Corporation PXF40-48WS12	8-DIP Module	12 V	1	36 V		40 W	OCP OVP Remote On/Off SCP	ITE (Commercial)	75 V	Through Hole	1.6 kV		50.8 mm	0.4 "	2 in	8.6 mm	50.8 mm	2 in	Isolated Module	-40 C	105 ░C	87 %		3.333 A
