XZVG53 Series

Manufacturer: SunLED

Catalog

LED GREEN CLEAR CHIP SMD

Part	Lens Size [diameter]	Package / Case	Package / Case	Wavelength - Dominant	Color	Lens Style	Height (Max) [Max] [z]	Viewing Angle	Current - Test	Millicandela Rating	Supplier Device Package	Lens Color	Mounting Type	Configuration	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Height (Max) [z]	Lens Size [x]	Lens Size [y]	Height (Max) [z]
SunLED XZVG53W-8	0.35 mm	1608 Metric	0603	570 nm	Green	Round with Domed Top	0.95 mm	60 °	20 mA	188 mcd	Chip LED	Colorless	Surface Mount	Standard	1.6 mm	0.8 mm	2.1 V	Clear

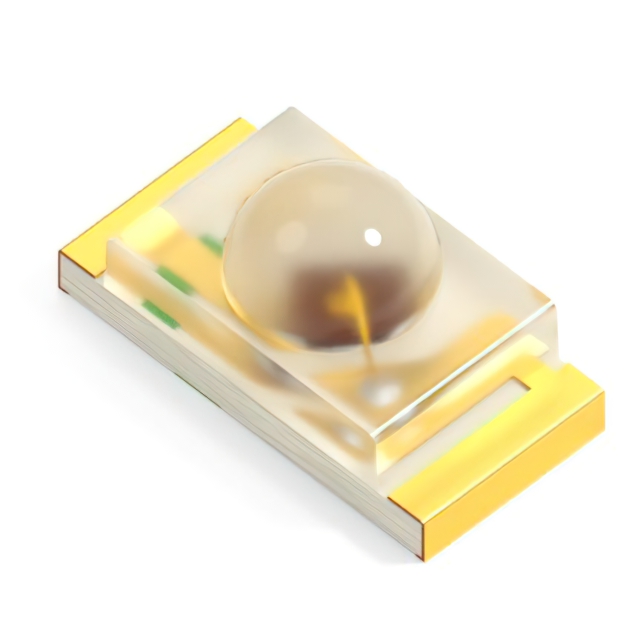

SunLED XZVG53W-8ST	0.7 mm	1608 Metric	0603	570 nm	Green	Round with Domed Top	0.8 mm	100 °	20 mA	79 mcd	Chip LED	Colorless	Surface Mount	Standard	1.6 mm	0.8 mm	2.1 V	Clear

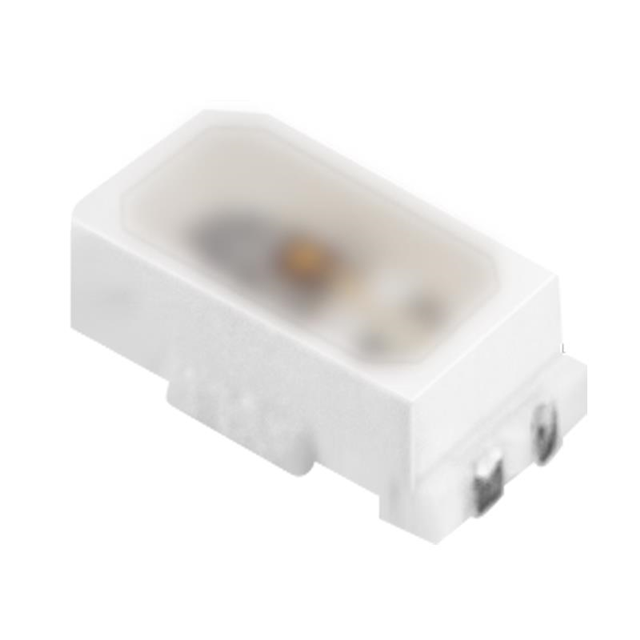

SunLED XZVG53S-4		1608 Metric	0603	570 nm	Green	Rectangle with Flat Top		120 °	20 mA	74 mcd		Colorless	Surface Mount		1.6 mm	0.8 mm	2.1 V	Clear	0.7 mm	1.4 mm	0.8 mm

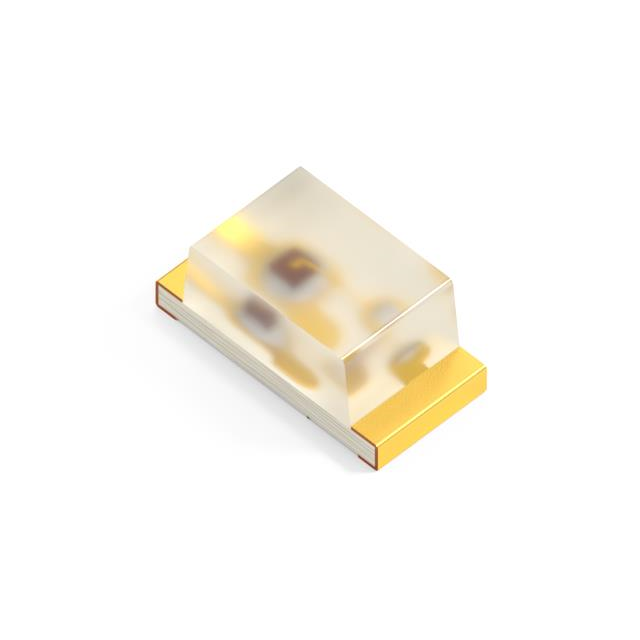

SunLED XZVG53W-3		1608 Metric	0603	570 nm	Green	Rectangle with Flat Top		120 °	20 mA	49 mcd	Chip LED	Colorless	Surface Mount	Standard	1.6 mm	0.8 mm	2.1 V	Clear		1.1 mm	0.8 mm	0.45 mm
