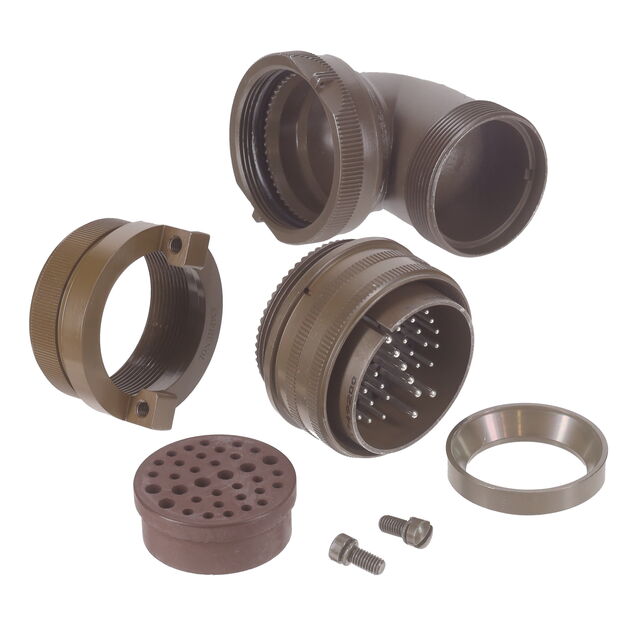

MS3108E32 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
MIL-5015 MS/AC THREADED PLUG
| Part | Shielding | Insert Material | Grade | Shell Material | Mounting Type | Features | Cable Opening | Shell Finish | Primary Material | Orientation | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Number of Positions | Contact Material | Color | Shell Size - Insert Length | Shell Size - Insert Width | Ingress Protection | Current Rating Options | Fastening Type | Termination | Contact Finish - Mating | Connector Type | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Unshielded | Neoprene | Military | Aluminum Alloy | Free Hanging (In-Line) Right Angle | Cable Clamp Coupling Nut | 1.156 in | Cadmium Olive Drab Chromate | Metal | N (Normal) | Marine Military | 125 °C | -55 °C | 35 | Copper Alloy | Olive Drab | 32 mm | 7 mm | Environment Resistant | 13A 23A | Threaded | Solder Cup | Silver | Male Pins Plug | MIL-DTL-5015 |
