2114-2 Series

Manufacturer: Oupiin

Catalog

PIN HEADER, DOUBLE ROW, 10 PINS,

Part	Contact Finish Thickness - Post (Mating) [custom]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Termination	Mounting Type	Color	Number of Rows [custom]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Stack Height	Length - Stack Height
Oupiin 2114-2X05G00S-3-3-10.5B	Flash	3 mm	0.118 "	2 mm	0.079 in	0.177 "	4.5 mm	10	10.5 mm	0.413 in	Gold	0.079 in	2 mm	3 mm	0.118 in	Solder	Through Hole	Black	2
Oupiin 2114-2X20G00S/033/044/K
Oupiin 2114-2X10G00S-3-3-17.5B	Flash	3 mm	0.118 "	2 mm	0.079 in	0.453 in	11.5 mm	20	17.5 mm	0.689 in	Gold	0.079 in	2 mm	3 mm	0.118 in	Solder	Through Hole	Black	2
Oupiin 2114-2X12G00S-2.8-8-17.1B	Flash	8 mm	0.315 in	2 mm	0.079 in			24	17.1 mm	0.673 in	Gold	0.079 in	2 mm	2.8 mm	0.11 in	Solder	Through Hole	Black	2	0.248 in	6.3 mm
Oupiin 2114-2X16G00S-3.2-3.2-12B	Flash	3.2 mm	0.126 in	2 mm	0.079 in				12 mm	0.472 in	Gold	0.079 in	2 mm	3.2 mm	0.126 in	Solder	Through Hole	Black	2			0.22 in	5.6 mm
Oupiin 2114-2X05G00S-3-3-17.5B	Flash	3 mm	0.118 "	2 mm	0.079 in	0.453 in	11.5 mm	10	17.5 mm	0.689 in	Gold	0.079 in	2 mm	3 mm	0.118 in	Solder	Through Hole	Black	2
Oupiin 2114-2X03G00S-3.2-3.2-12B	Flash	3.2 mm	0.126 in	2 mm	0.079 in			6	12 mm	0.472 in	Gold	0.079 in	2 mm	3.2 mm	0.126 in	Solder	Through Hole	Black	2			0.22 in	5.6 mm

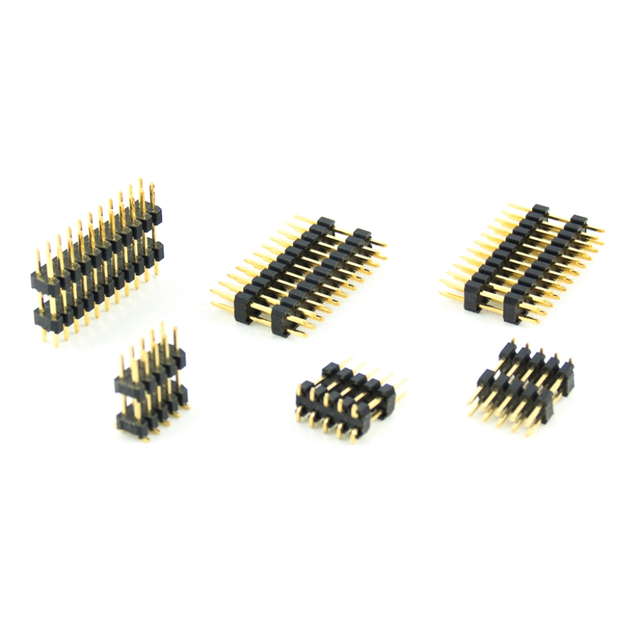

Oupiin 2114-2X16G00S3-3-14B	Flash	3 mm	0.118 "	2 mm	0.079 in				14 mm	0.551 in	Gold	0.079 in	2 mm	3 mm	0.118 in	Solder	Through Hole	Black	2			0.315 in	8 mm
Oupiin 2114-2X20G00D/069/118T-P	Flash	6.9 mm	0.272 in					40	11.8 mm	0.465 in	Gold					Solder	Surface Mount		2
Oupiin 2114-2X30G00S/2.8/2.8/26.5B	Flash	2.8 mm	0.11 "	2 mm	0.079 in			60	26.5 mm	1.043 in	Gold	0.079 in	2 mm	2.8 mm	0.11 in	Solder	Through Hole	Black	2			0.823 in	20.904 mm
