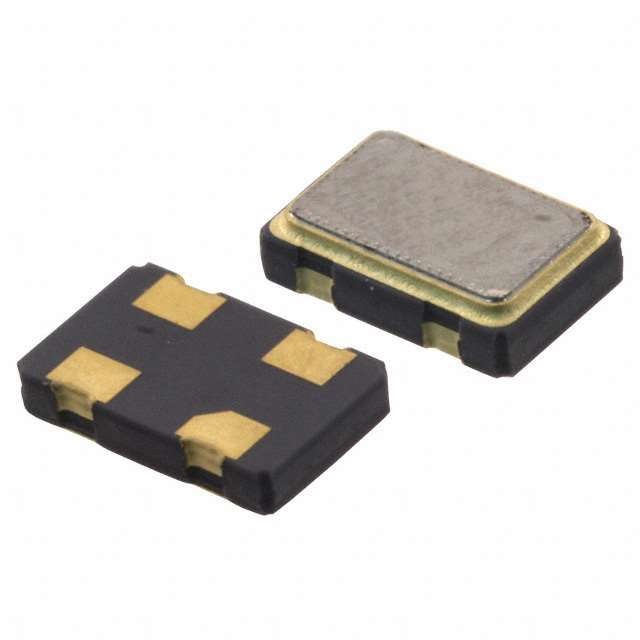

ECS-3518/3525 Series
Manufacturer: ECS Inc.
Beta
⌘K
STANDARD CLOCK OSCILLATORS 2.5V 10MHZ SMD CLOCK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Base Resonator [custom] | Output | Current - Supply (Max) [Max] | Type | Frequency Stability | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Frequency | Function | Voltage - Supply | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 70 °C | 0 °C | Crystal | HCMOS | 8 mA | XO (Standard) | 50 ppm | 3.2 mm | 0.126 in | 5 mm | 0.197 in | 4-SMD No Lead | 10 MHz | Enable/Disable | 2.5 V | 0.051 in | 1.3 mm | Surface Mount |
 ECS Inc. | 70 °C | 0 °C | Crystal | HCMOS | 25 mA | XO (Standard) | 50 ppm | 3.2 mm | 0.126 in | 5 mm | 0.197 in | 4-SMD No Lead | 60 MHz | Enable/Disable | 1.8 V | 0.051 in | 1.3 mm | Surface Mount |
ECS Inc. | 70 °C | 0 °C | Crystal | HCMOS | 25 mA | XO (Standard) | 50 ppm | 3.2 mm | 0.126 in | 5 mm | 0.197 in | 4-SMD No Lead | 80 MHz | Enable/Disable | 1.8 V | 0.051 in | 1.3 mm | Surface Mount |
