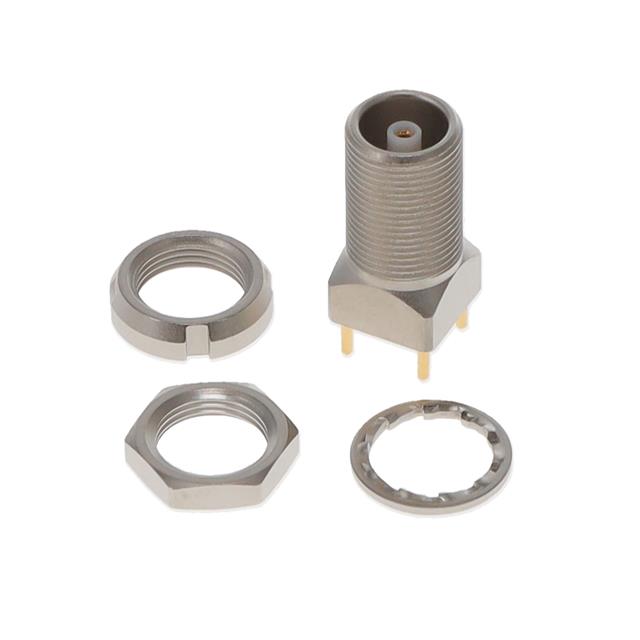

EPE.00.250 Series
Manufacturer: LEMO
Beta
⌘K
CONN NIMCAMAC RCPT STR 50OHM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Mating Cycles | Center Contact Plating | Dielectric Material | Voltage Rating | Includes | Connector Style | Center Contact Material | Housing Color | Impedance | Contact Termination | Ingress Protection | Mounting Feature | Connector Type | Fastening Type | Mounting Type | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | -55 C | 260 °C | Nickel | Brass | 5000 | Gold | Polytetrafluoroethylene (PTFE) | 700 VDC | 1 Connector 1 Lockwasher 2 Nuts | NIM-CAMAC CD/N 549 | Bronze | Silver | 50 Ohms | Solder | IP50 - Dust Protected | Bulkhead - Front Side Nut | Receptacle Female Socket | Push-Pull | Panel Mount Through Hole | 1 | Solder |
