83349E Series
Manufacturer: Belden Inc.
Beta
⌘K

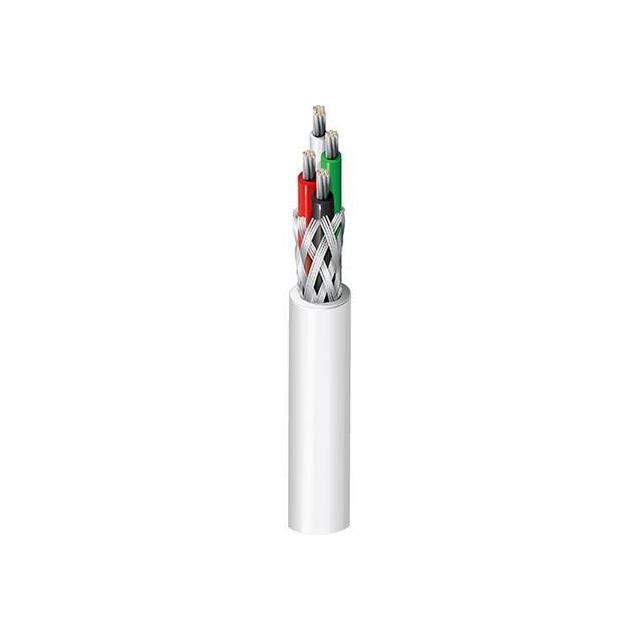

CABLE 4COND 22AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Length | Length | Cable Type | Shield Type | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Qualification | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | 85 % | 34 AWG | 19 | 600 V | -65 ░C | 200 °C | Copper Silver Coated | 304.8 m | 1000 ft | Multi-Conductor | Braid | Tetrafluoroethylene (TFE) | White | 4 | 0.163 in | 4.14 mm | MIL-W-16878/4 Type E | 0.279 mm | 0.011 " | 22 AWG | Tetrafluoroethylene (TFE) |
