0279-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Tail Type	Accepts Square Pin Size	Accepts Square Pin Size

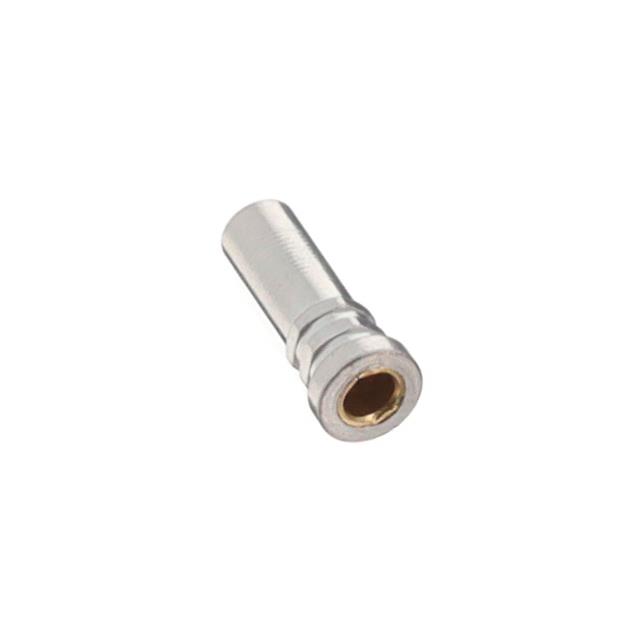

Mill-Max Manufacturing Corp. 0279-0-15-80-47-14-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm

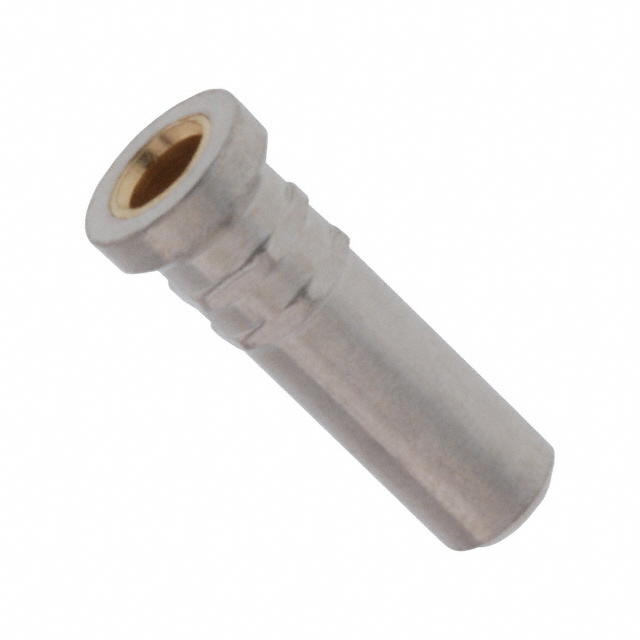

Mill-Max Manufacturing Corp. 0279-0-15-01-47-27-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Gold	Beryllium Copper	0.76 Ám	30 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0279-0-15-01-47-01-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Tin-Lead	Beryllium Copper	5.08 Ám	200 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0279-0-15-01-47-14-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0279-0-15-15-47-14-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Gold	Beryllium Copper	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm

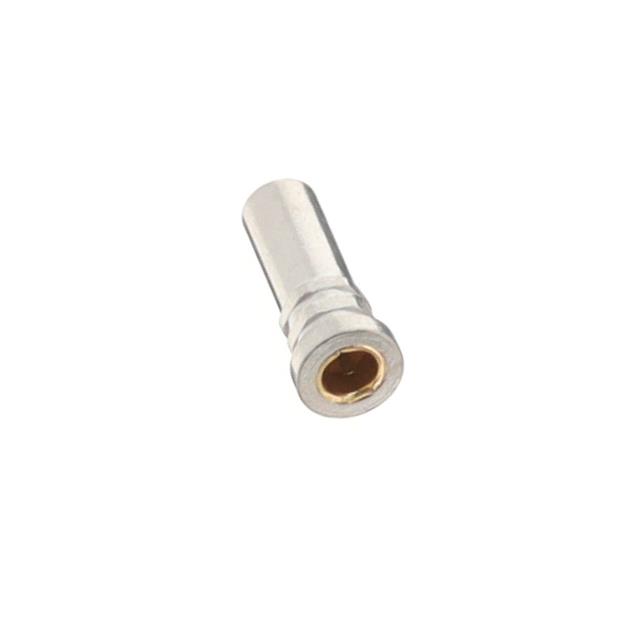

Mill-Max Manufacturing Corp. 0279-0-15-80-47-27-10-0	-55 C	125 °C	0.062 in	1.57 mm	Hex Press-Fit	0.078 "	1.98 mm	0.051 in	1.3 mm	Gold	Beryllium Copper	0.76 Ám	30 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	4.19 mm	0.165 in	No Tail	0.025 in	0.64 mm
